Vendor: Diamond Products

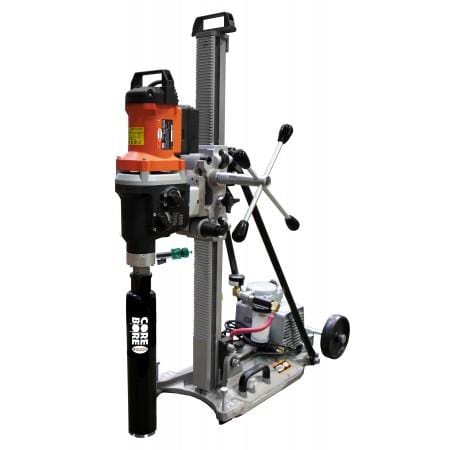

M5 PRO Heavy Duty Q.D. Combination Core Drill Rig

$4,766.00
$4,766.00
Sold out
Shipping calculated at checkout.
Sku: 4220095

M-5 PRO Heavy Duty Quick Disconnect core drill rig is the ideal professional choice to meet all your drilling needs. The fastest quick-disconnect out there with one of the lightest extruded aluminum column with a reinforced track and steel roller guide offering the 3:1 and 1:1 Gear reduction ratio.

Caret Down
Caret Down

Finance your Next Project

Click Here to Apply for Financing

View full details
M5 PRO Heavy Duty Q.D. Combination Core Drill Rig
M5 PRO Heavy Duty Q.D. Combination..
Caret Down

Additional Info

M5 PRO HEAVY DUTY QD COMBINATION CORE DRILL RIG

  • Quick disconnect motor mount that makes it easy to remove the motor
  • 4-spoke handle (can be used on right or left) on combo rig

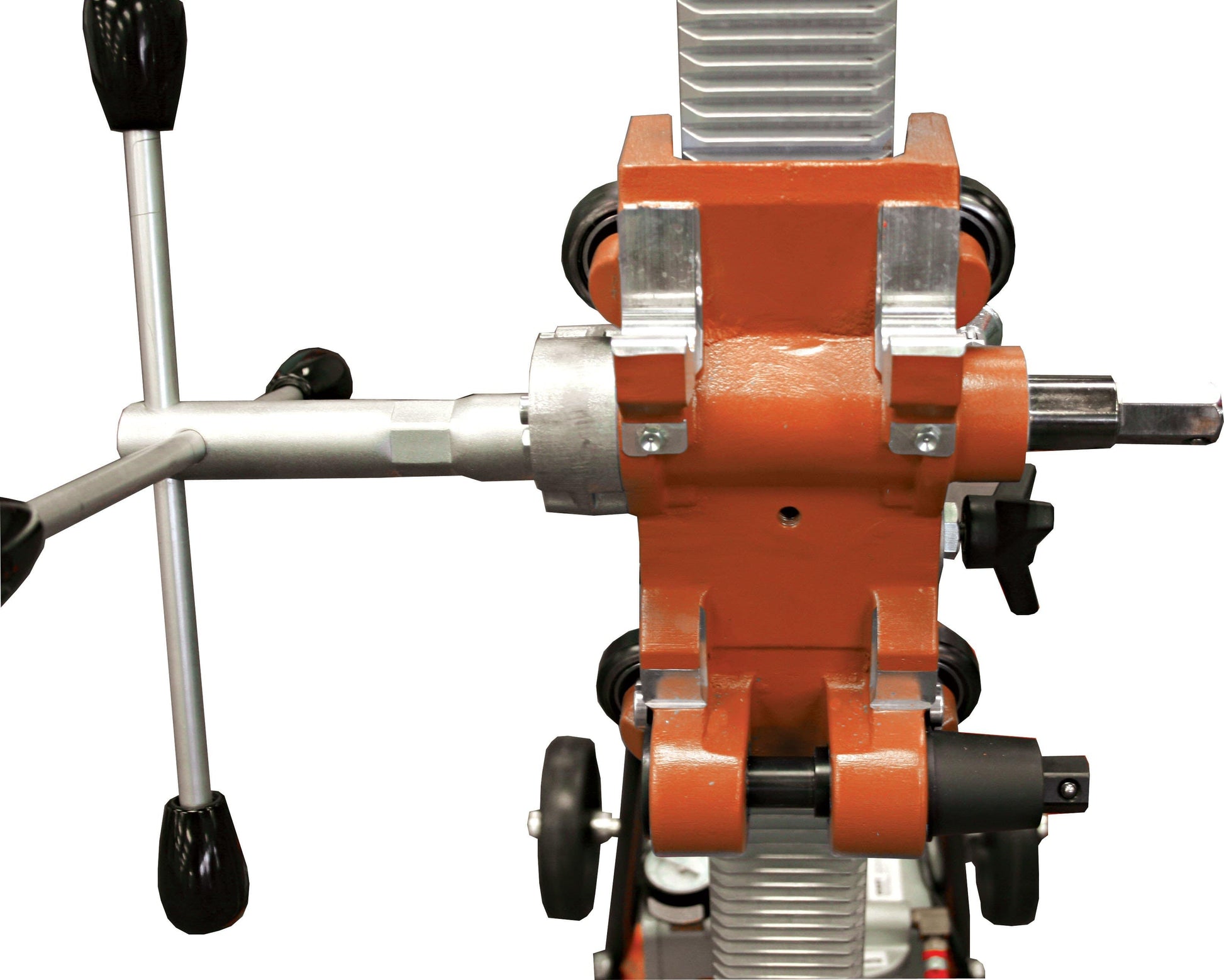

  • Positive carriage lock and friction lock
  • Extruded aluminum light weight column (mast) that has a reinforced track with steel roller guide and rollers
  • Dual control panel/amp meter included with combination rigs
  • Quick release vacuum button
  • 2 gear ratios for easy carriage feed
The M-5 Core Drill Rigs offer the quick connect (motor to stand) as a standard feature.  Ability to mount and set the drill stand without added weight of motor.  Once mounted you can easily attach motor and begin drilling.
There are thousands of ways to build your custom rig.  Please call Ace Cutting if you have any questions.

MotorAmpsRPM's
CB73320550/1000/1600

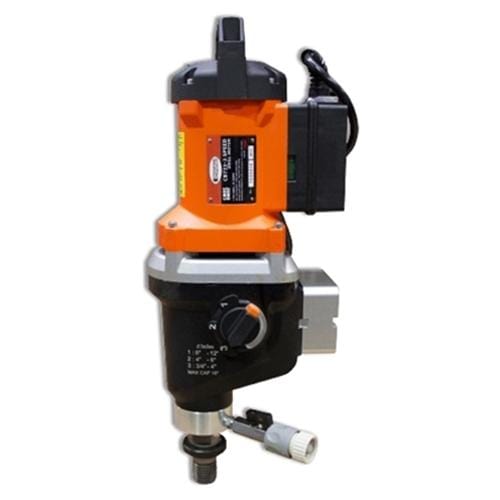

CB74425385/530/975/1340
Milwaukee 400420300/600
Milwaukee 409620450/900
Milwaukee 4005 20600/1200
Milwaukee 409715500/1000
Weka DK2223550/1120/1680
Weka DK22S23800/1640/2430

M5 Parts List
