Ace Cutting

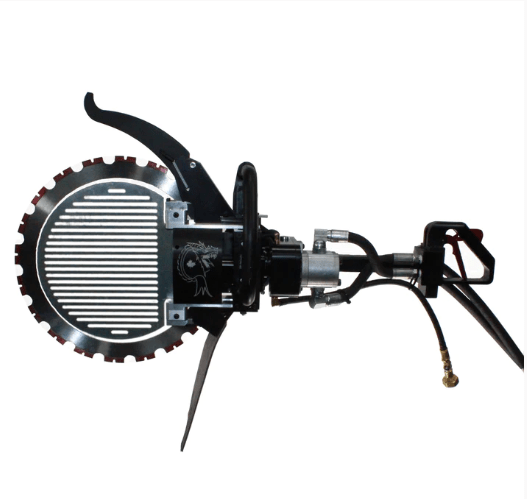

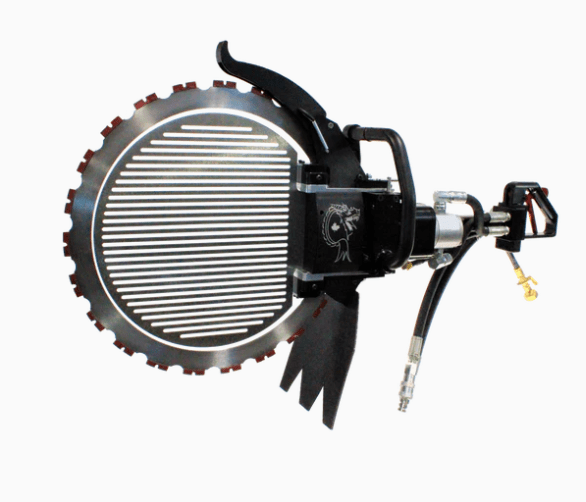

Hydraulic Dragon Saw Concrete Ring Saw - Black Edition

SKU: HDS2022-H12

Hydraulic Dragon saw with optional 8 or 12 gallon per minute motor.  With ½” quick disconnect hose and fittings at a weight of 29.8 lbs. allowing you to cut up to 20” deep with a 24” blade.  First ever hydraulic hand saw capable of cutting that deep with one blade, extend up to three times faster than chainsawing. Diamond blade life up to five time longer than chainsaw!!

Regular price $4,182.00
Sale price $4,182.00
Shipping calculated at checkout.
Quantity must be 1 or more

Product options:

We accept payment
  • Description
  • Specs
  • Reviews
  • FILES

Description

HYDRAULIC DRAGON SAW HDS CONCRETE SAW - BLACK EDITION

BLADE NOT INCLUDED, AVAILABLE SEPARATELY

Features & Benefits

  • The ONLY hand saw capable of cutting up to 20” deep in concrete or block
  • 16", 20", and 24" blades available

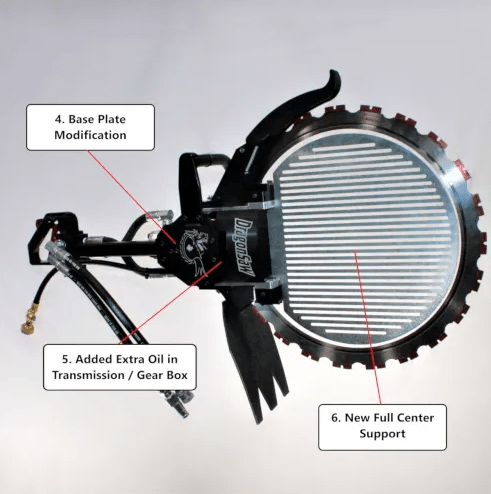

  • Comes standard with 16" full center support, 20" and 24" options available separately
  • No pre-cutting is required
  • Best power transfer to blade-where it is needed
  • 1/3 less cutting cost than chain sawing
  • Up to three times faster than chain sawing
  • Diamond blade life up to five times longer
  • 100% use of blade
  • Weight 29.8 lbs.
  • Wet cutting only

Hydraulics

  • Connection 1/2" fittings
  • About 12" of hose length
  • 2000-2500 PSI
  • Weight 32 lbs with blade

Maintenance

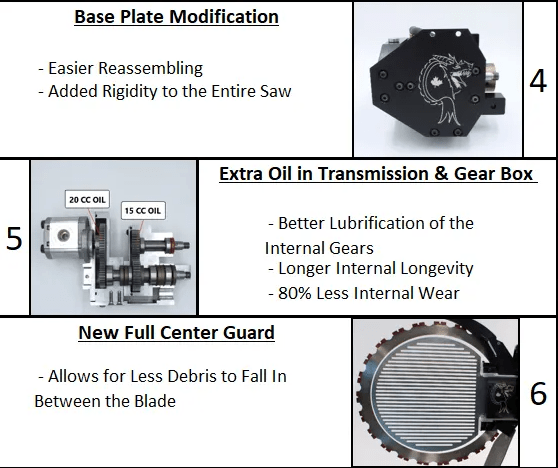

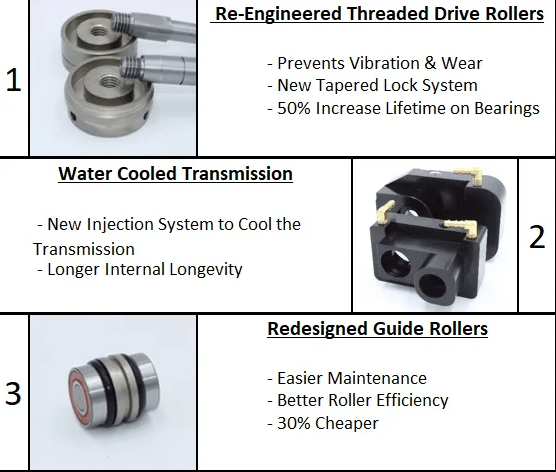

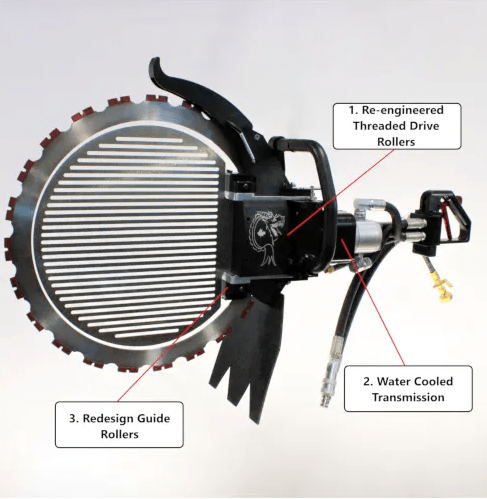

  • Best practice to replace gearbox and transmission oil with each new blade, possible with new Black Edition Dragon Saw oil to last for 2 blades before its critical to change oil.  Black Edition has water cooled gearbox.
  • ** Use ISO 32 PURE SYNTHETIC OIL **



HDS DRAGON RING SAW

Min. blade diameter 16"
16" blade cutting depth 12"
Max blade diameter 24"
24" blade cutting depth 20"
Blade cooling Water cooling only (no dry cutting)

Specs

PSI (Pounds per sq inch)2000 (2500 max)
Weight29.8 lbs
Connections1/2" hose (approx. 12" length) 1/2" fittings
