Vendor: Husqvarna

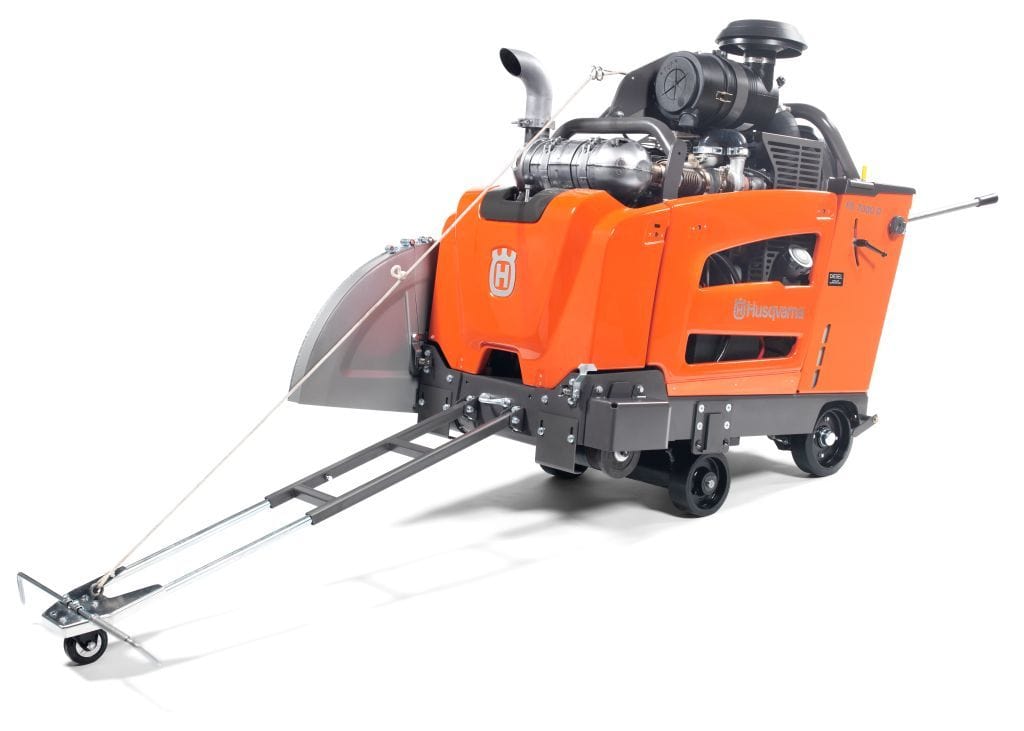

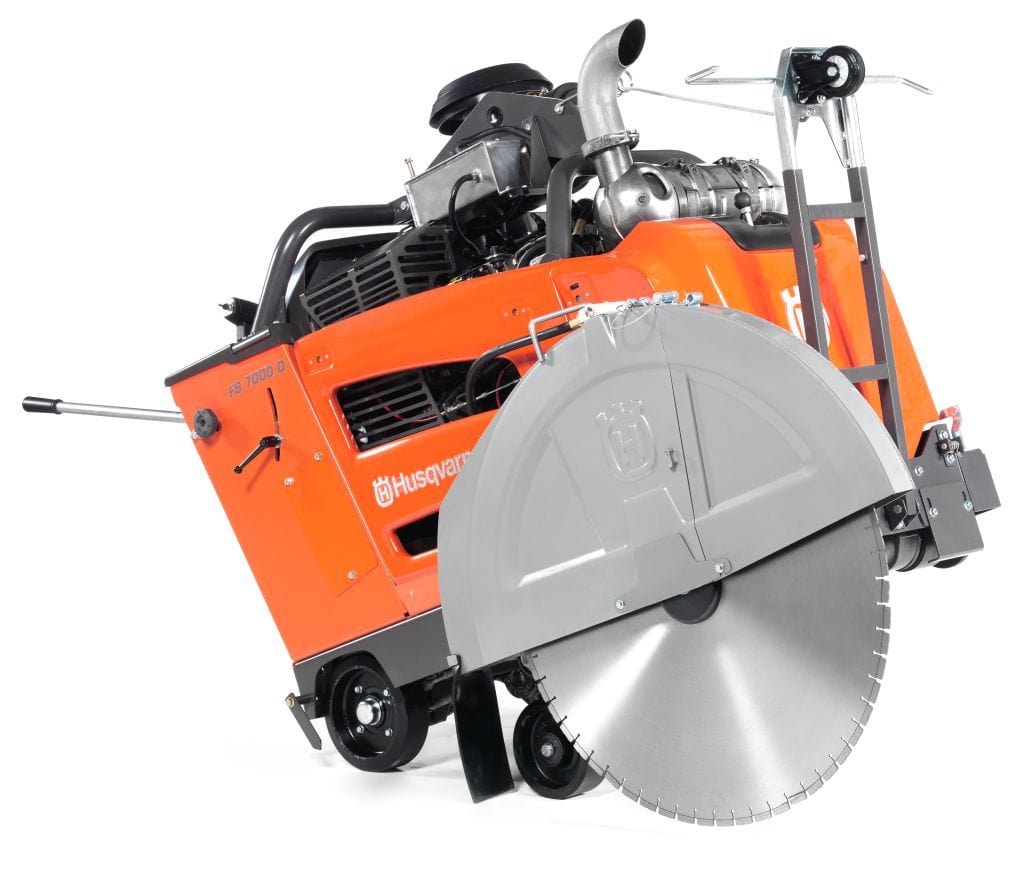

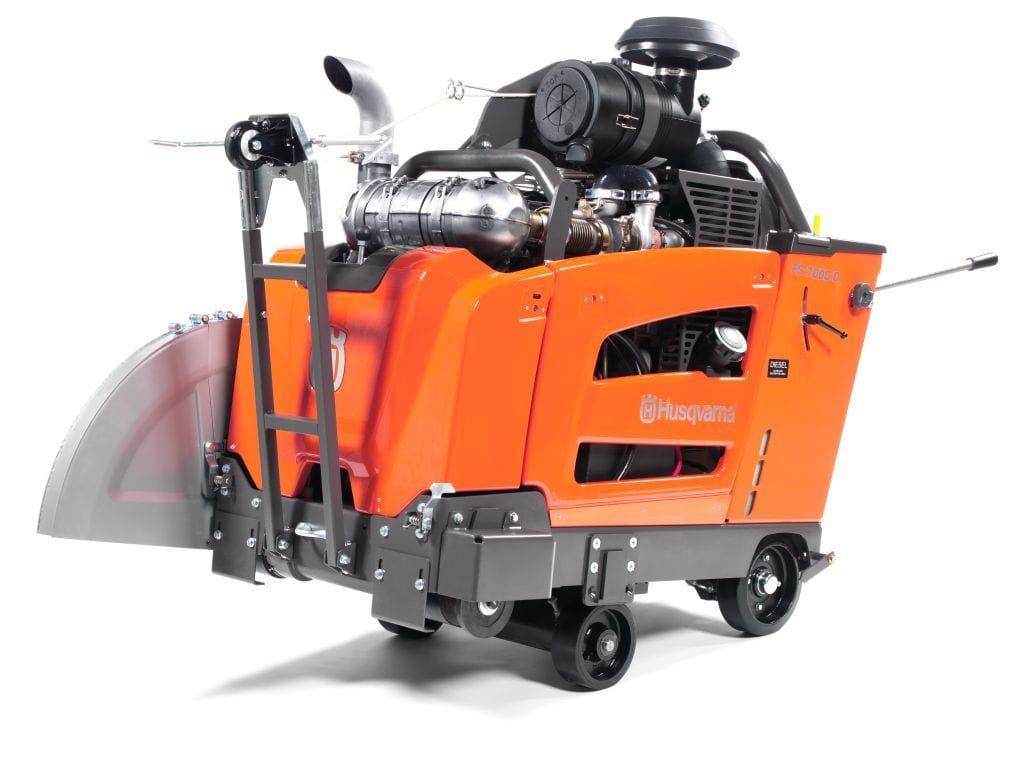

FS7000D Husqvarna Diesel Concrete Saw

$45,989.00
$45,989.00
Sold out
Shipping calculated at checkout.
Sku: 967207903

Husqvarna FS7000 diesel concrete walk behind saw has the ability to hold a 42" blade with 17.5" cutting depth. Tier 4 compliant engine meets current EPA regulations along with digital display dashboard featuring all important functions and easy to monitor.

Caret Down
Caret Down
Caret Down

Finance your Next Project

Click Here to Apply for Financing

View full details
ace-cutting-husqvarna-fs7000-diesel-concrete-saw
FS7000D Husqvarna Diesel Concrete Saw
Caret Down

Additional Info

FS7000D HUSQVARNA DIESEL WALK BEHIND SAW

Applications

  • Large jobs such as airports, highways, larger service work, and other applications where production is a priority.
  • Mid-size jobs that require high production rates.

Benefits

  • Tier 4 compliant engine meets current EPA regulations.
  • Power transmission system transmits more power to the bladeshaft with optimum torque.

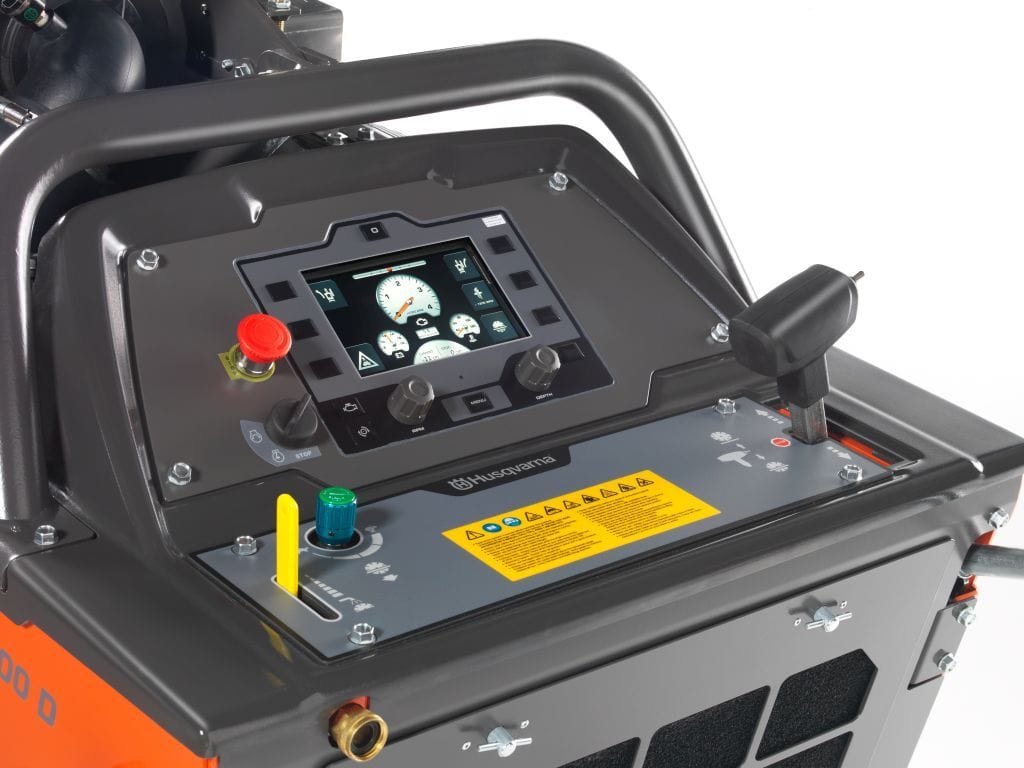

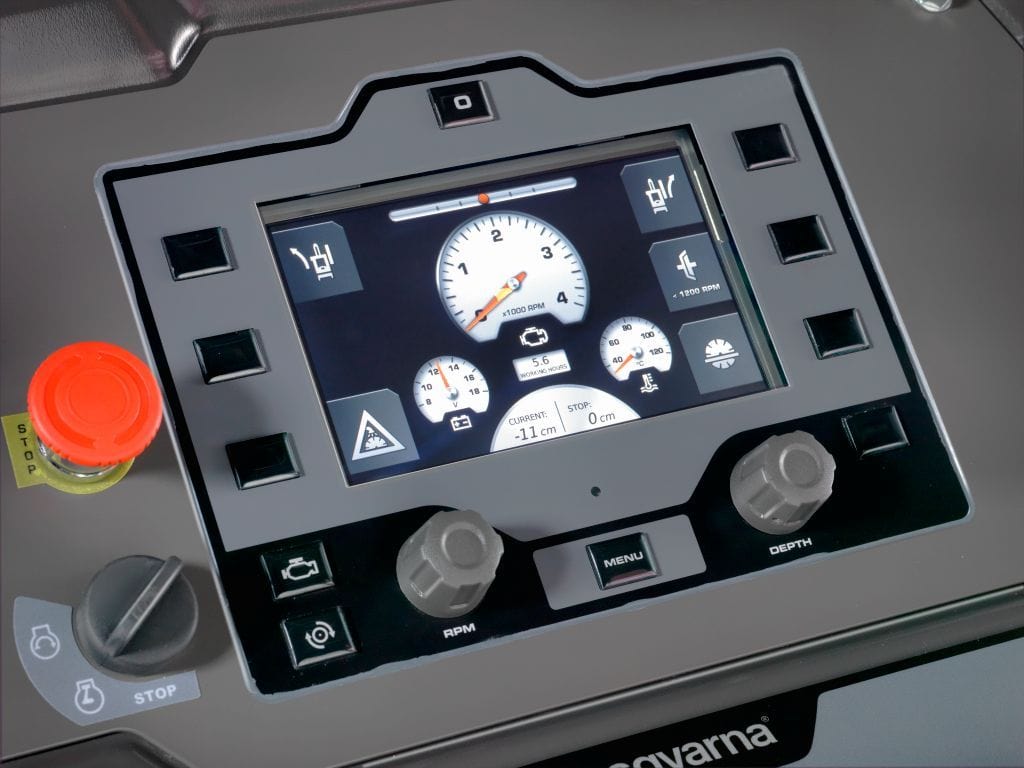

  • Digital display dashboard features all important functions and is easy to monitor.
  • E-track system option has an integrated reset function in the display making it easier to produce a straight cut.
  • Heavy-duty blade shaft to handle large blades.
  • 5-pin blade flanges with standard single pin featuring LOU pin pattern.

TECHNICAL SPECIFICATIONS

 Max blade diameter, in 20" 26" 30" 36" 42"
Max depth of cut, in 7-5/8" 10-1/2" 12-1/2" 15" 17-1/2"
Average bladeshaft, RPM 2,362 1,762 1,624 1,354 1,150
Blade flanges, in 4-1/2" 5" 5" 6" 7"
Max weight crated, lbs 2,213 2,224 2,233 2,246 2,385
Max weight uncrated, lbs 2,103 2,114 2,123 2,136 2,275

Maximum power, HP (kW)74 (55)
Power at bladeshaft, HP (kW)66 (48)
Arbor size, in (mm)1" (25)
Bladeshaft diameter, in (mm)2" (51)
Cylinders / Cycle4/4
Fuel capacity, gal (l)10.6 (40)
Air filterDual element radial seal with rain hood
Starter Electric
Engine coolingLiquid / Air
Axle front / rear, in (mm)1" (25)
Wheels front, in (mm)8" x 3" (203 x 76)
Wheels rear, in (mm)10" x 3" (254 x 76)
Blade guard typeSlip-on
Number of belts16 (Set of 4, banded belts)
Blade depth controlElectrohydraulic Pump
Dimensions uncrated, pointer and blade guard up, handles in, L x W x H67" x 38" x 57"
Displacement, cu in (l)178 (2.92)
Bore / Stroke, in (mm)3.6 / 4.3 (91/109)
Oil capacity, qt (l)9 (8.5)

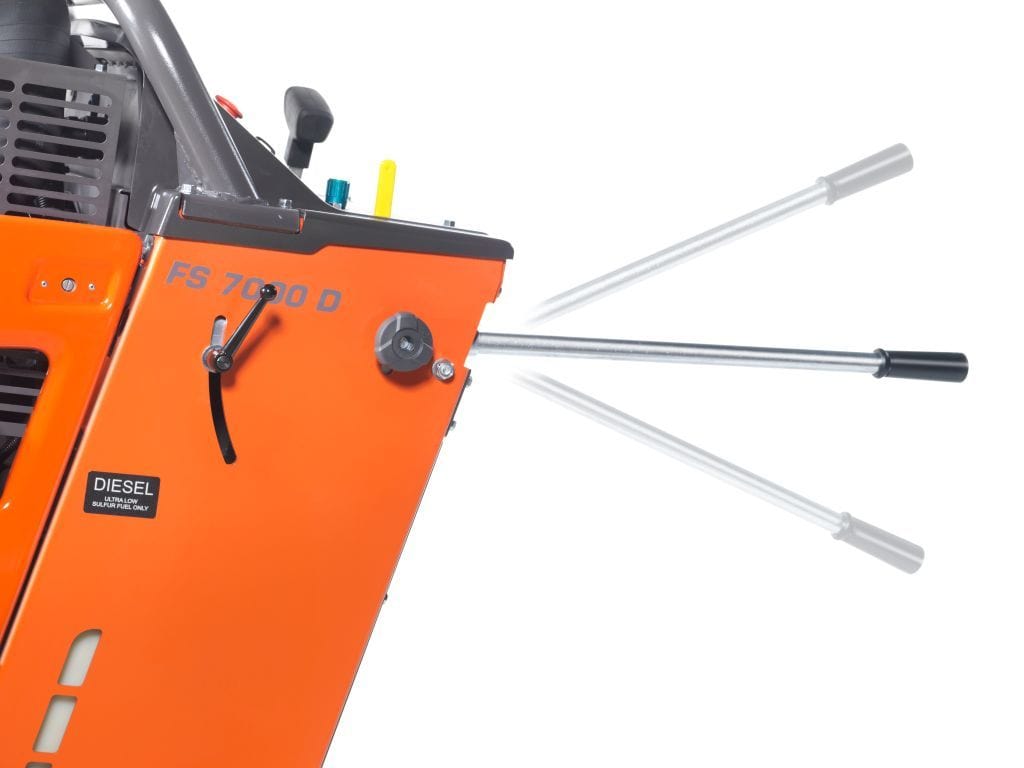

Handlebar adjustmentVariable Position
Transmission typeBalanced dual motor hydrostatic drive
Transmission speeds, fpm0-300
Electric tracking (optional)Electric switch operated

FS7000 Spec Sheet

FS7000 Parts List
