Vendor: Husqvarna

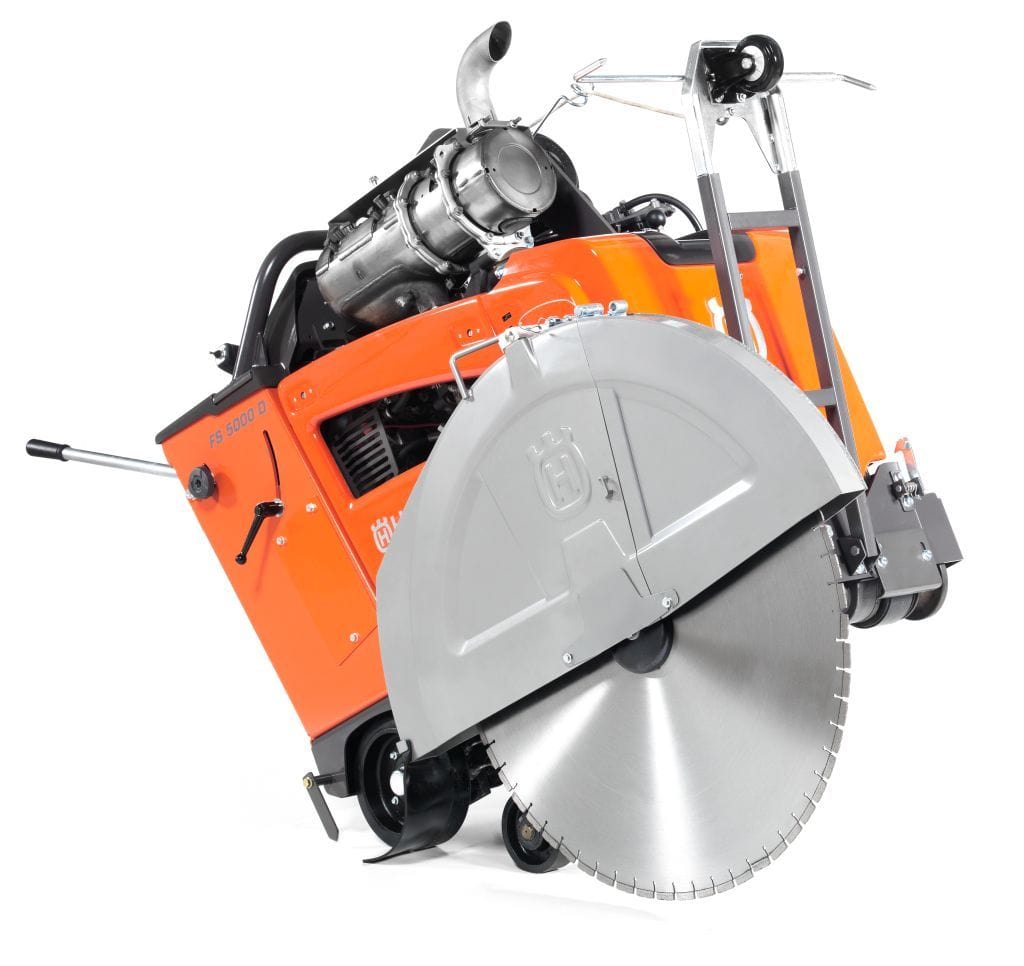

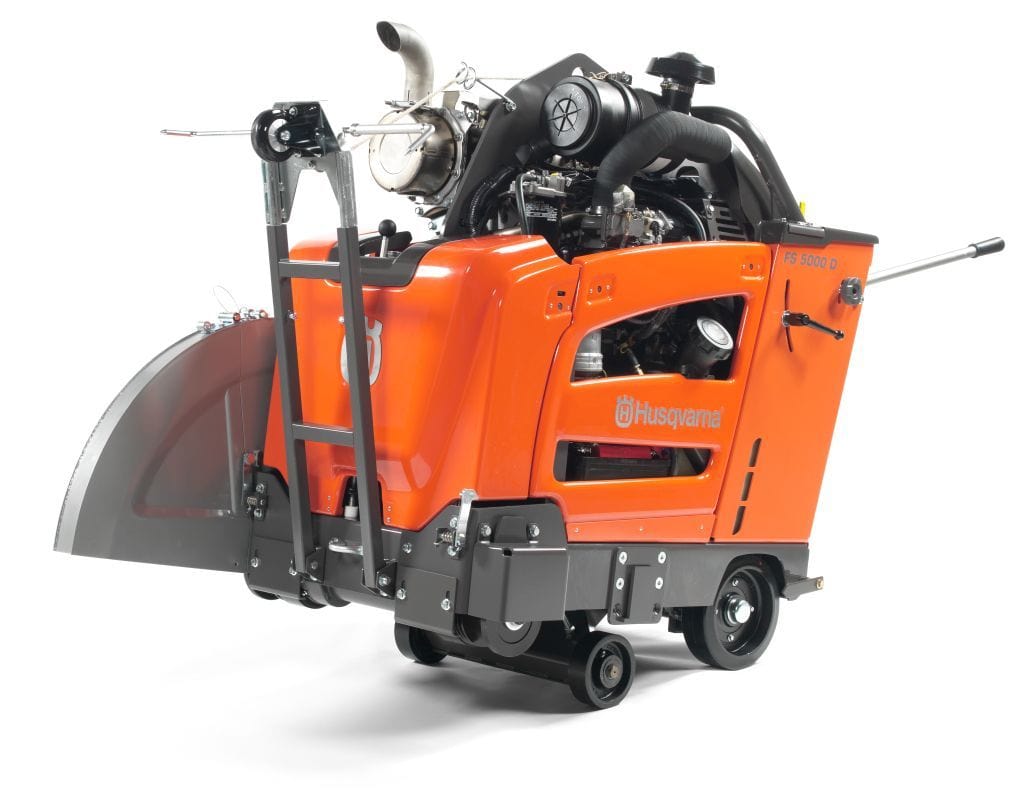

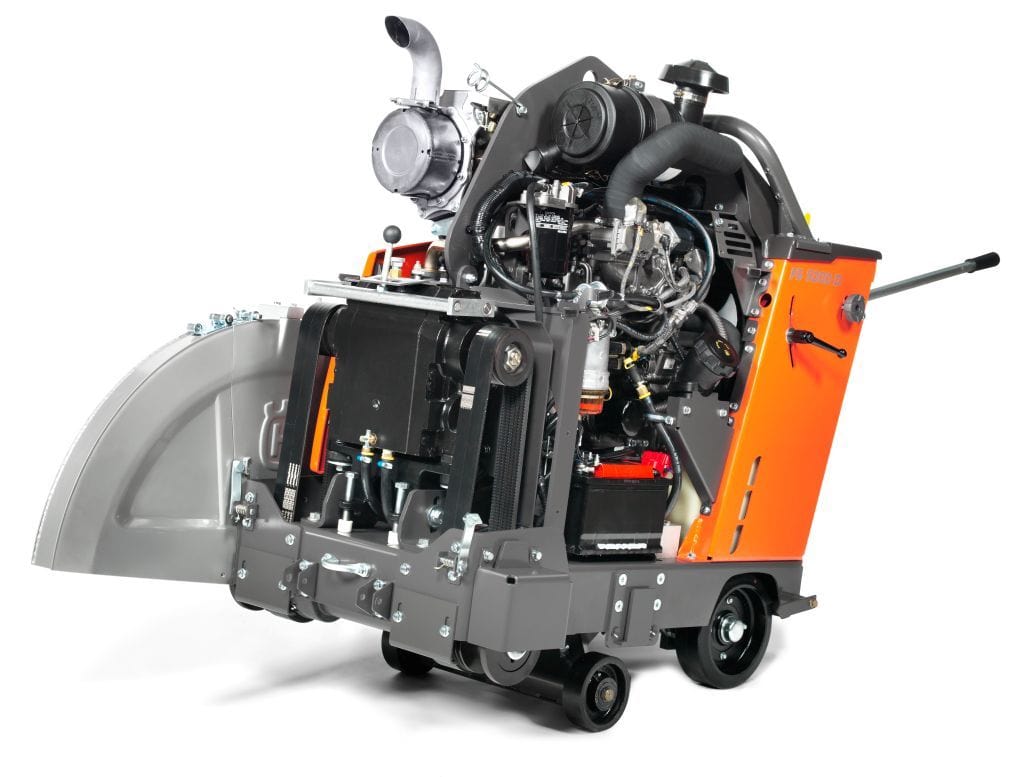

FS5000D Husqvarna Diesel Concrete Saw

$36,933.00
$36,933.00
Sold out
Shipping calculated at checkout.
Sku: 967207307

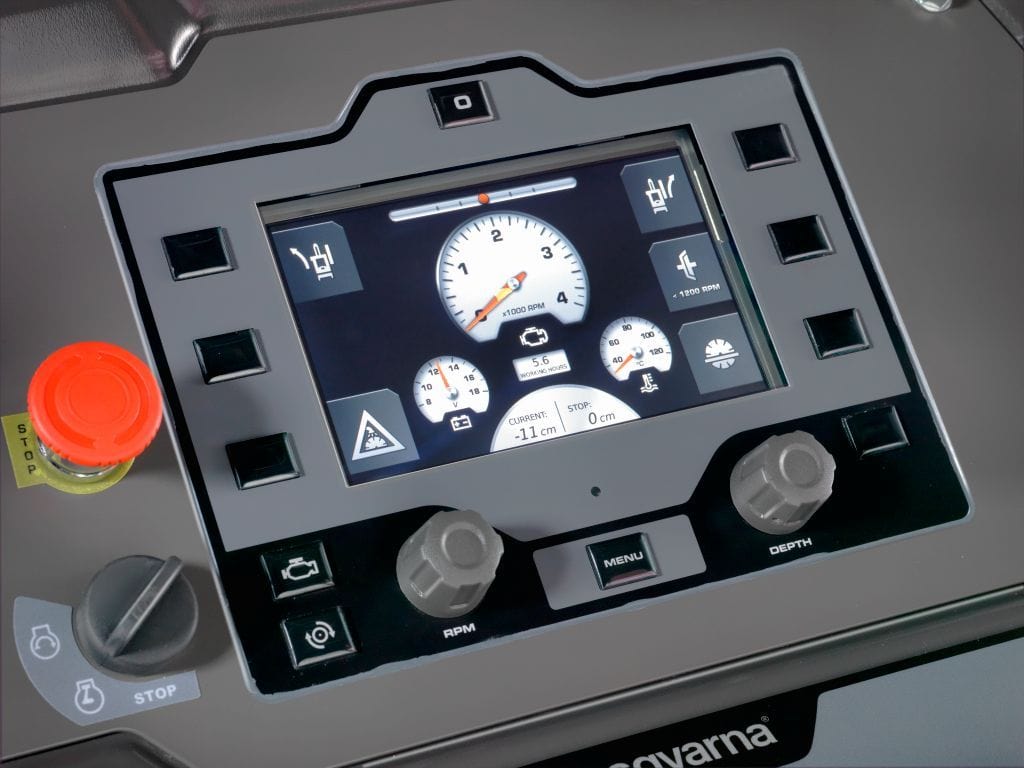

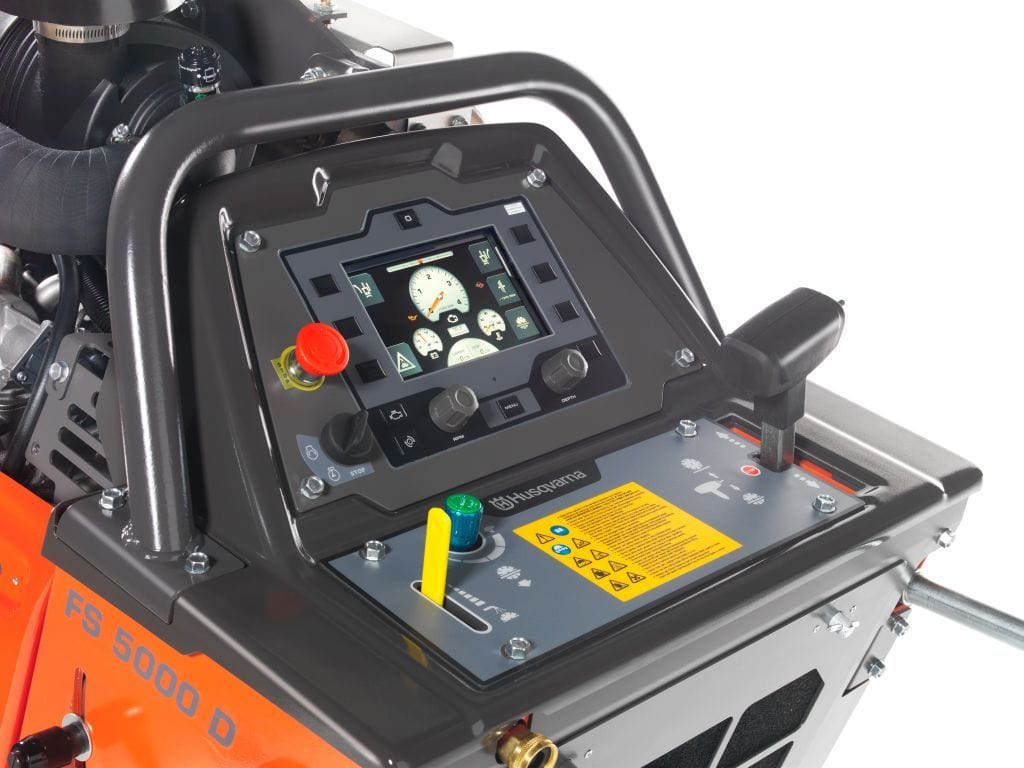

FS5000D Husqvarna diesel walk behind saw has the ability to cut up to 15" deep. Tier 4 compliant engine with digital display dashboard featuring all important functions and easy to monitor.

Caret Down
Caret Down

Finance your Next Project

Click Here to Apply for Financing

View full details
FS5000D Husqvarna Diesel Concrete Saw
FS5000D Husqvarna Diesel Concrete Saw
Caret Down

Additional Info

FS5000D HUSQVARNA DIESEL WALK BEHIND SAW

BLADE NOT INCLUDED, AVAILABLE SEPARATELY

Applications

  • Perfect for jobs such as airports, highways, service work, and other applications where production is a priority.
  • Mid- to small-size jobs that require high production rate.

Benefits

  • Tier 4 compliant engine meets current EPA regulations.

  • Blade diameters up to 36" provides maximum cutting depth of 15".

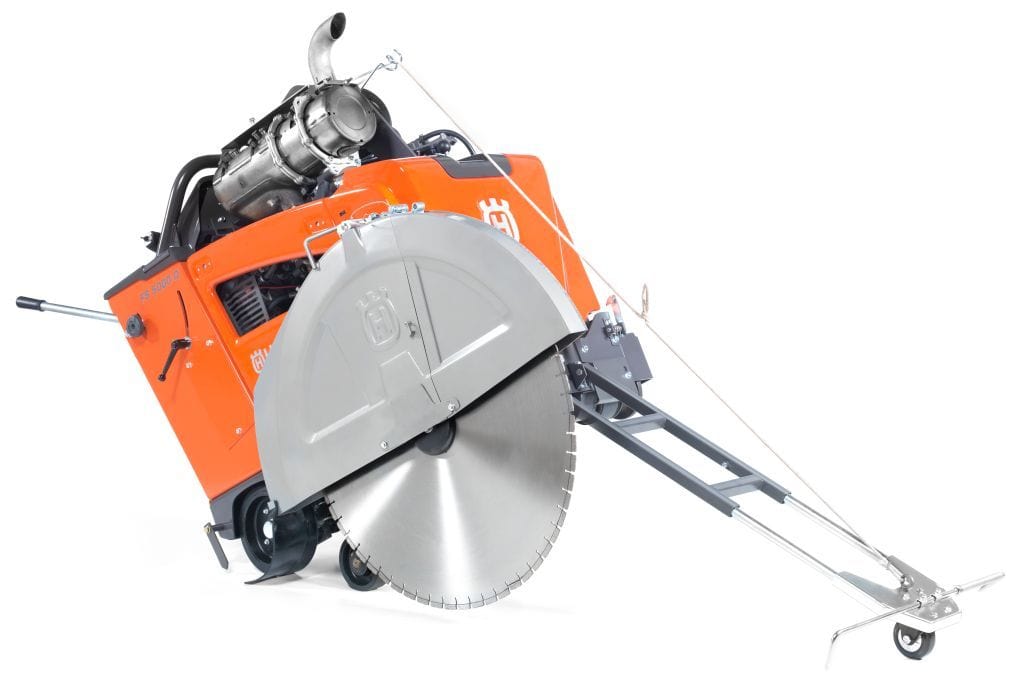

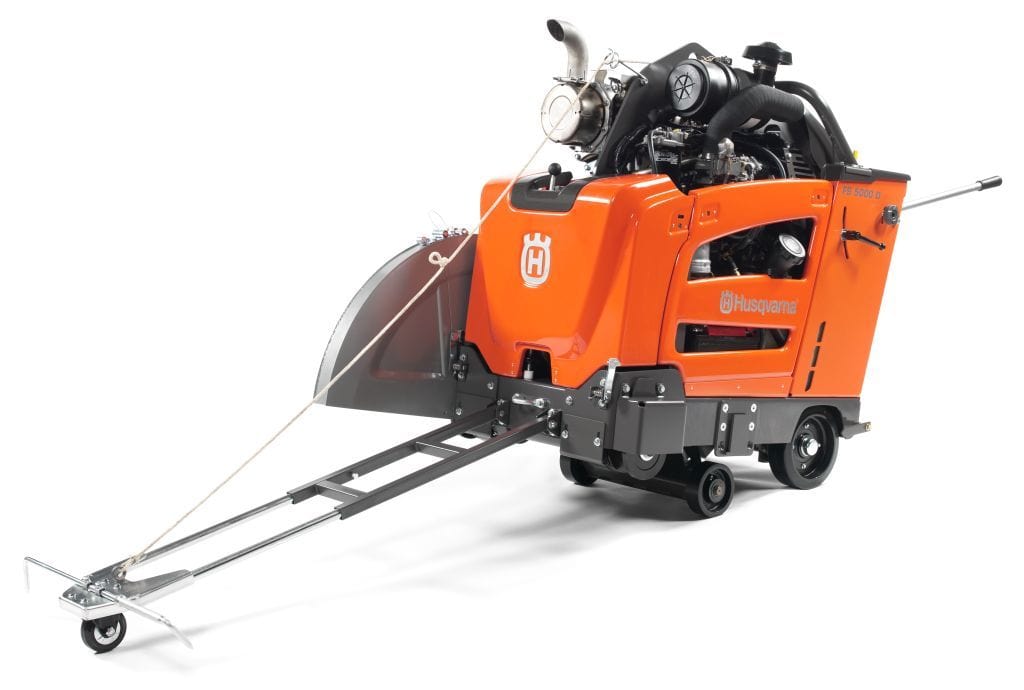

  • Optional E-track system with an integrated reset function in the display making it easier to produce a straight cut.
  • Power transmission system transmits more power to the bladeshaft with optimum torque.

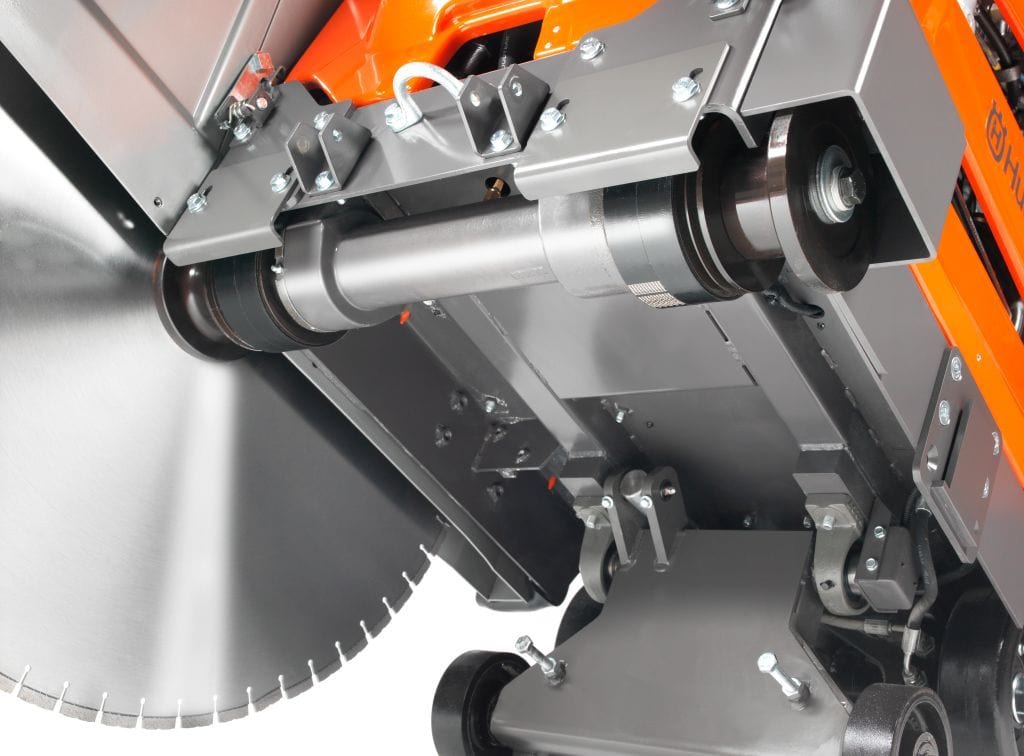

  • Patented IntelliSeal bladeshaft system allows a minimum of 500 maintenance-free hours and eliminates daily greasing of bearings.

TECHNICAL SPECIFICATIONS

 Max blade diameter, in 14" 20" 26" 30" 36"
Max depth of cut, in 4-3/4" 7-3/4" 10-1/2" 12-1/2" 15"
Average bladeshaft, RPM 3,197 2,400 1,866 1,628 1,355
Blade flanges, in 4-1/2" 4-1/2" 5" 5" 6"
Max weight crated, lbs 1,761 1,772 1,783 1,792 1,805
Max weight uncrated, lbs 1,656 1,667 1,678 1,687 1,700


Engine SpecificationsYanmar 4TNV88C-DHQ
Maximum power, HP (kW)48 (35.5)
Power at bladeshaft, HP (kW)42 (31)
Arbor size, in (mm)1" (25), single drive pin
Bladeshaft diameter, in (mm)2" (51)
Cylinders / Cycle4/4
Fuel Capacity, gal (l)7.8 (29.5)
Air FilterDual element radial seal with rain hood
Starter Electric
Engine CoolingLiquid / Air
Axle front / rear, in (mm)1" (25)
Wheels front, in (mm)6" x 2" (152 x 51)
Wheels rear, in (mm)10" x 3" (254 x 76)
Blade guard typeSlip-on
Number of belts12
Blade depth controlElectrohydraulic Pump
Dimensions uncrated, pointer and blade guard up, handles in, L x W x H56" x 33-1/4" x 51"
Displacement, cu in (l)133 (2.19)
Bore / Stroke, in (mm)3.5 / 3.55 (88/90)
Oil Capacity, qt (l)7.8 (7.4)
Handlebar adjustmentVariable Position
Transmission TypeBalanced dual motor hydrostatic drive
Transmission speeds, fpm0-300
Electric tracking (optional)Electric switch operated

FS5000 Spec Sheet

FS5000 Parts List
