Vendor: Husqvarna

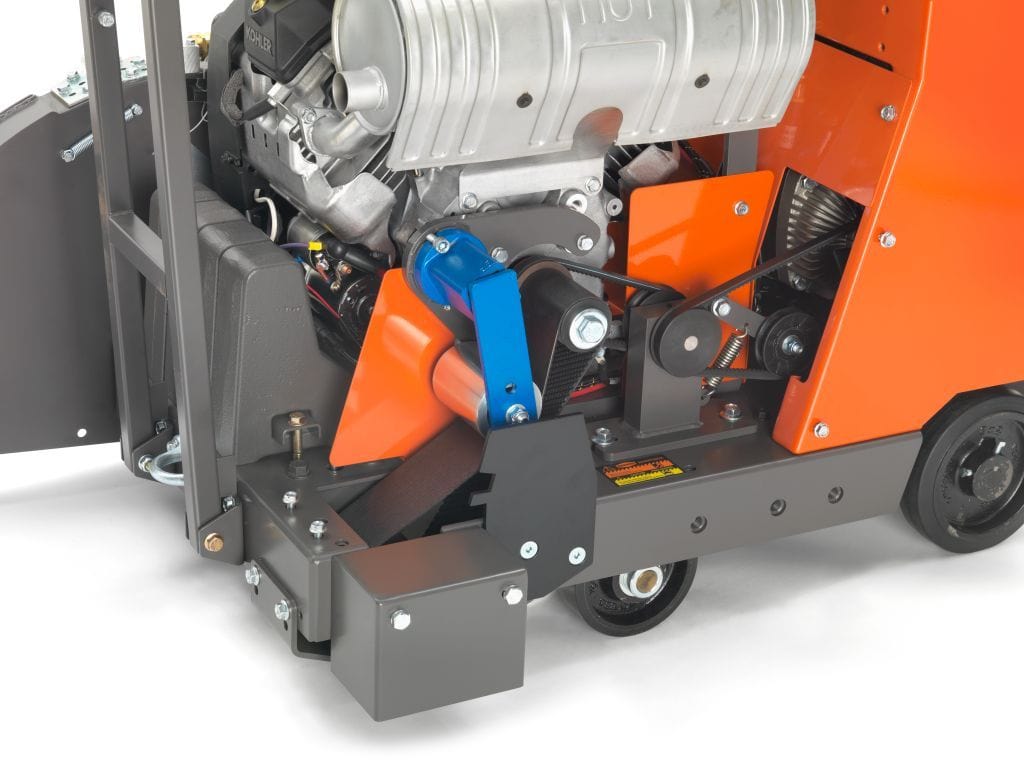

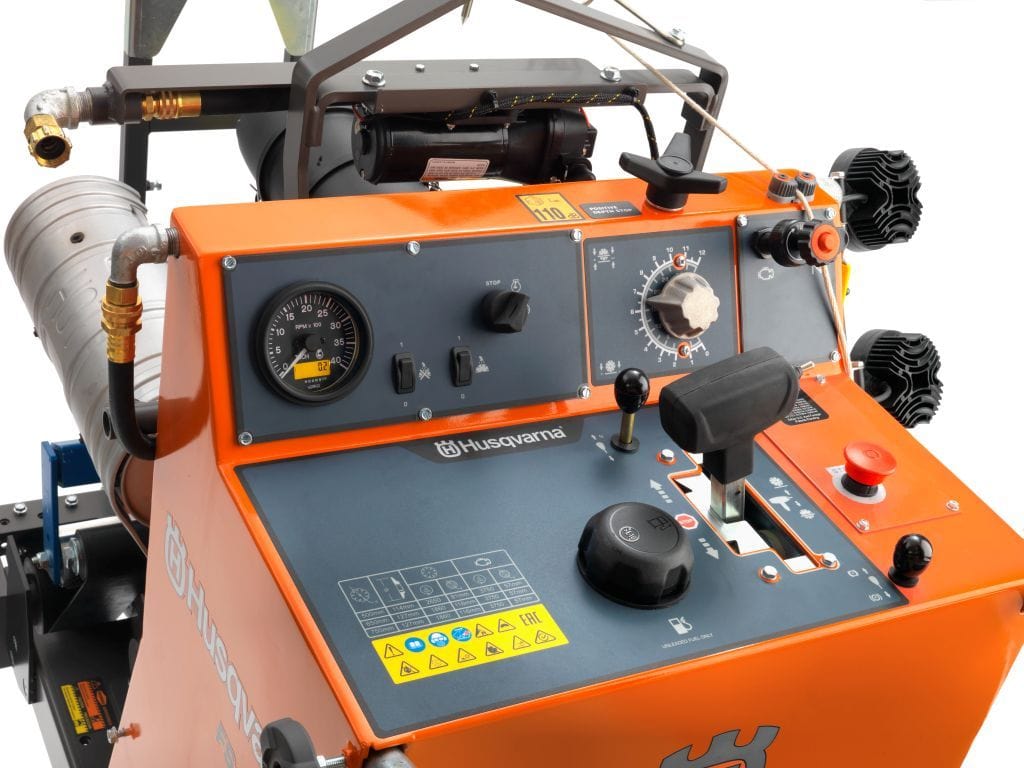

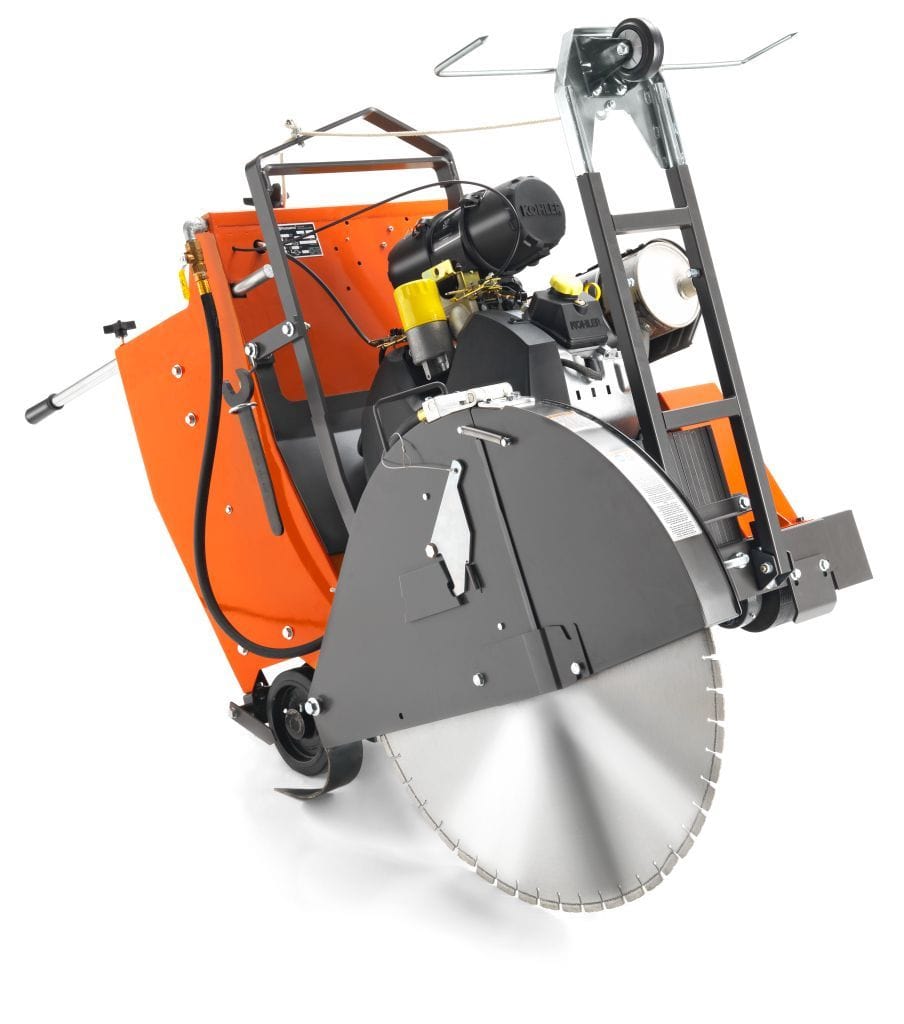

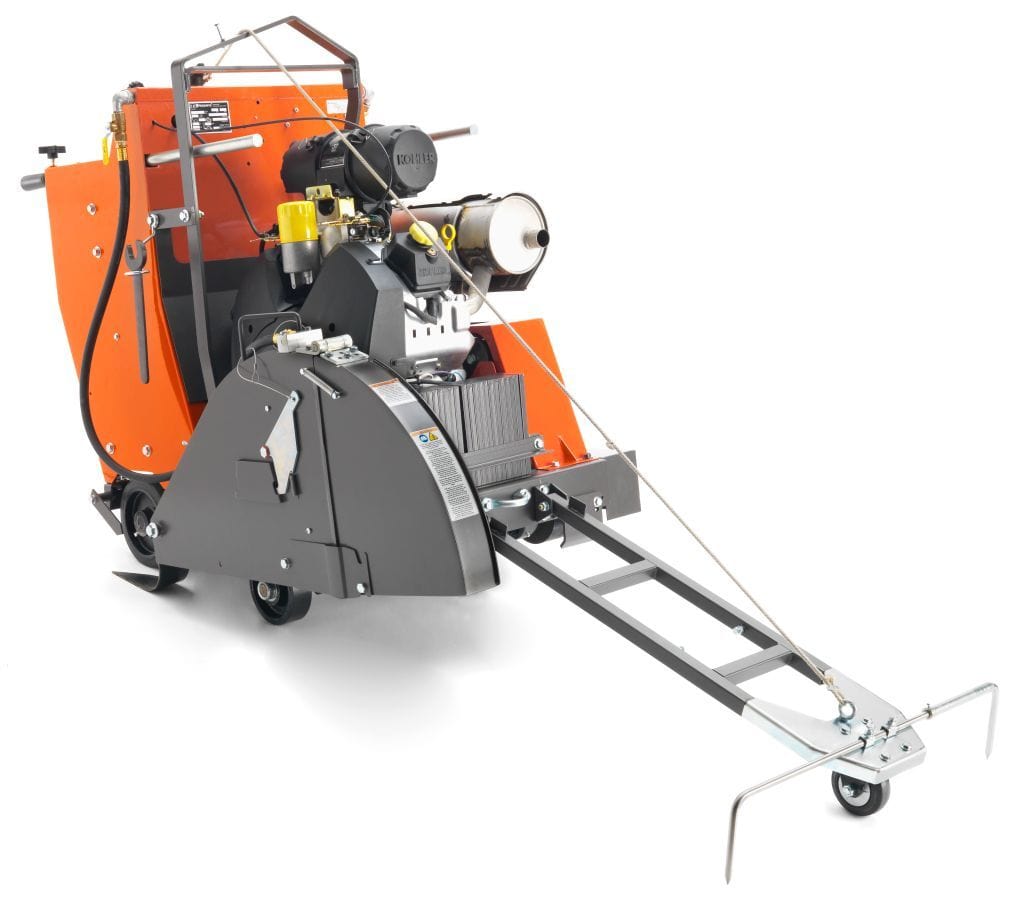

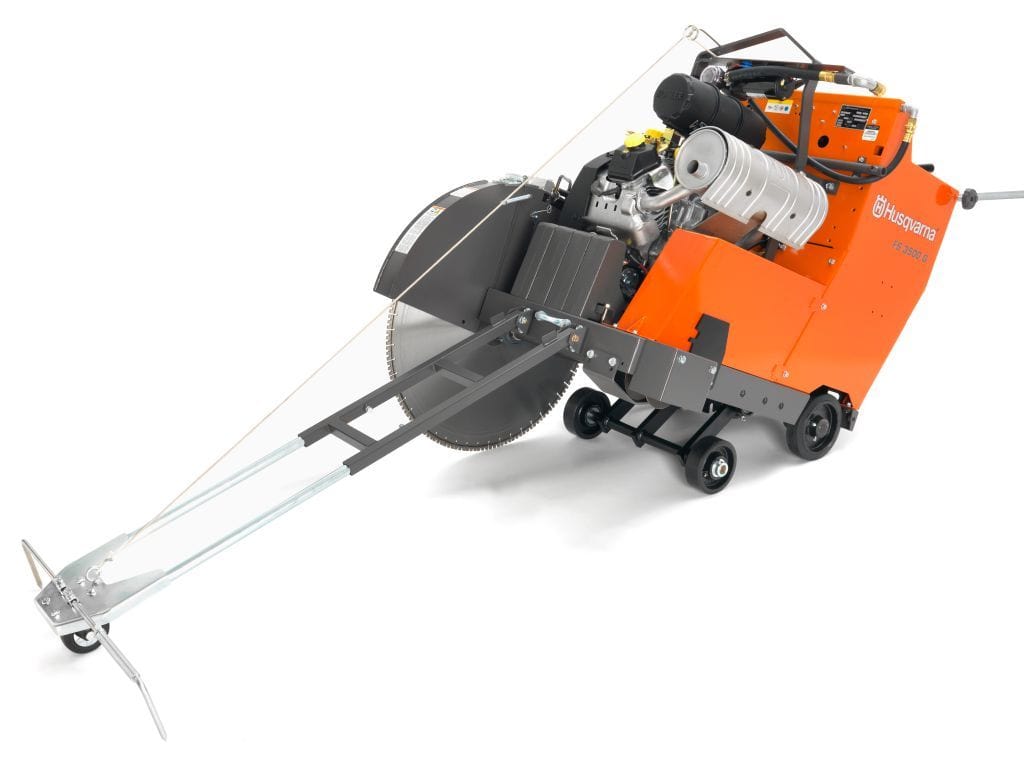

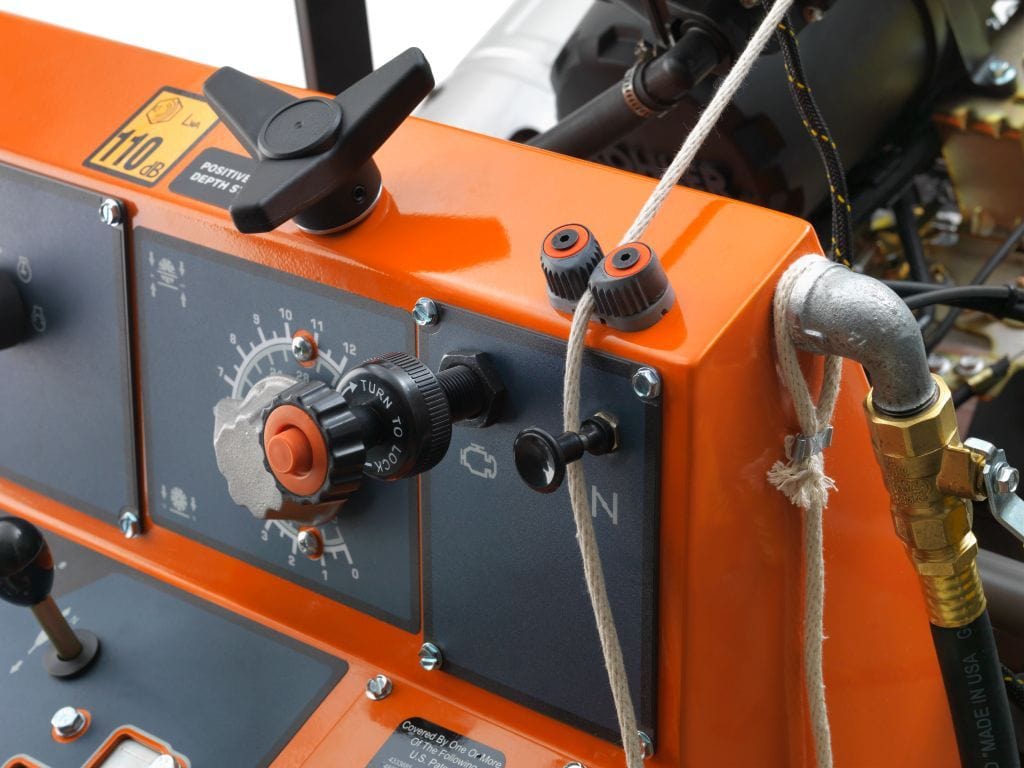

FS3500G EFI Husqvarna Gas Self Propelled Concrete Saw

Regular price $22,287.00
Regular price Sale price $22,287.00
Sold out
Shipping calculated at checkout.
Sku: 967673711

Husqvarna FS3500G EFI a great gas powered 37HP Kohler engine saw for cutting up to 12" deep. A well-balanced design ideal for small to medium size jobs.

Caret Down

Product Reviews

Caret Down
View full details
FS3500G EFI Husqvarna Gas Self Propelled Concrete Saw
FS3500G EFI Husqvarna Gas Self Propelled..
Caret Down

Additional Info

FS3500G EFI HUSQVARNA GAS WALK BEHIND SAW

BLADE NOT INCLUDED, AVAILABLE SEPARATELY

Applications

  • Ideal for repair and removal of driveways and sidewalks.

Benefits

  • New Kohler ECH980 EFI engine is EPA phase III compliant
  • Improved drive system reduces load on engine.
  • Updated quick disconnect blade flanges assist when blade is pinched in a cut.
  • Lift bail is standard for easy loading and unloading.
  • Dual arbors allow the blade to be mounted on either end of the bladeshaft for right or left cutting.
  • Hydraulic raise and lower system reduces operator fatigue and increases production.

TECHNICAL SPECIFICATIONS

 Max blade diameter, in 20" 26" 30"
Max depth of cut, in 7-5/8" 10-1/2" 12-3/8"
Average bladeshaft, RPM 2,650 1,860 1,860
Max weight uncrated, lbs 922 933 943

Engine SpecificationsKohler ECH980 EFI
Maximum power, HP (kW)38 (28.3)
Arbor size, in (mm)1" (25)
Bladeshaft diameter, in (mm)1-7/16" (36.5)
Cylinders / Cycle2/4
Fuel Capacity, gal (l)6 (28)
Air FilterHeavy canister
Starter Electric
Engine CoolingAir
Axle front / rear, in (mm)1" (25.4)
Wheels front, in (mm)6" x 2" x 1"(152 x 51 x 25.4)
Wheels rear, in (mm)8" x 2" x 1" (203 x 51 x 25.4)
Blade guard typeSlip-on
Number of belts25 Rib Poly V Belt
Blade depth controlElectrohydraulic Pump
Dimensions uncrated, pointer and blade guard up, handles in, L x W x H56" x 32" x 45"
Displacement, cu in (l)61 (1)
Bore / Stroke, in (mm)3.5 / 3.1 (89/79)
Oil Capacity, qt (l)2.9 (2.7)
Handlebar adjustmentTwo position
Transmission TypeHydrostatic drive
Transmission speeds, fpm0-150
