Vendor: Husqvarna

FS309 Husqvarna Push Concrete Saw Gas

Regular price $2,489.00
Regular price Sale price $2,489.00
Sold out
Shipping calculated at checkout.
Sku: 967678301

View full details

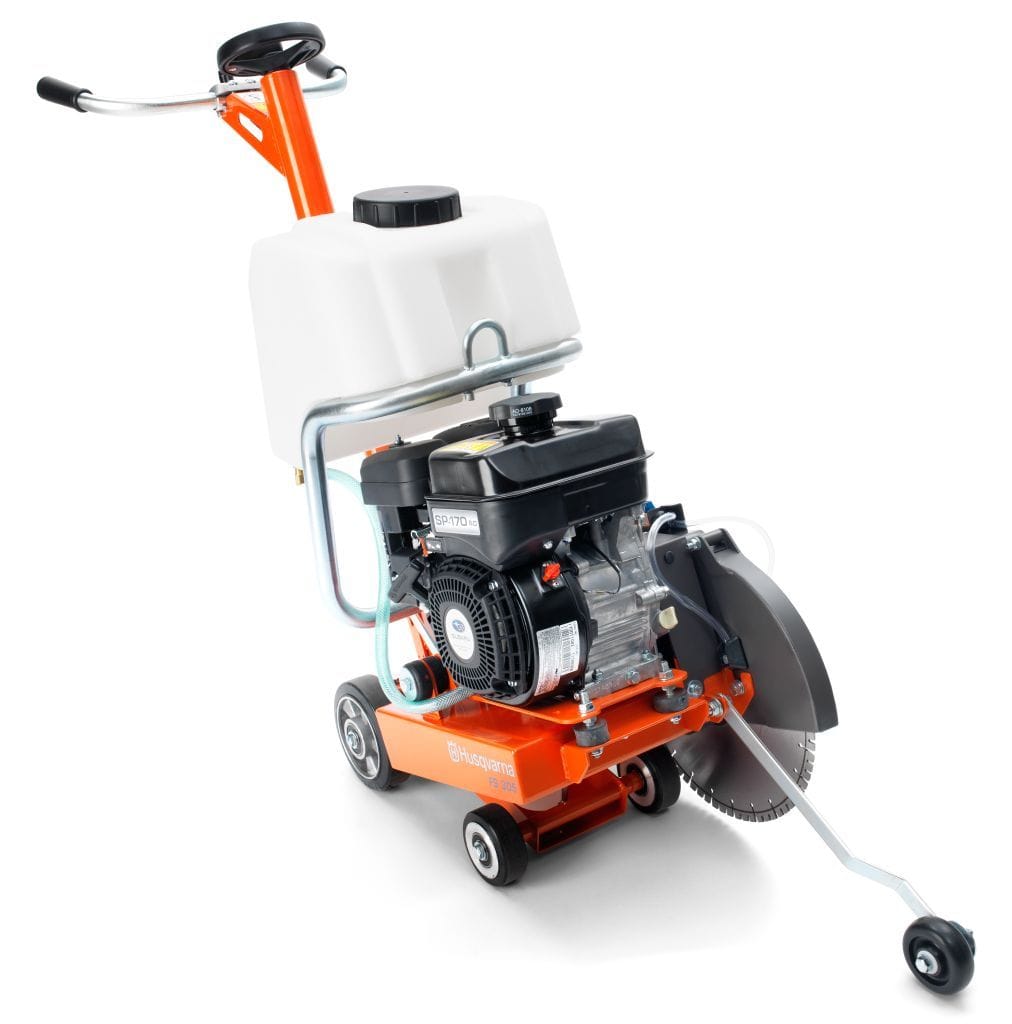

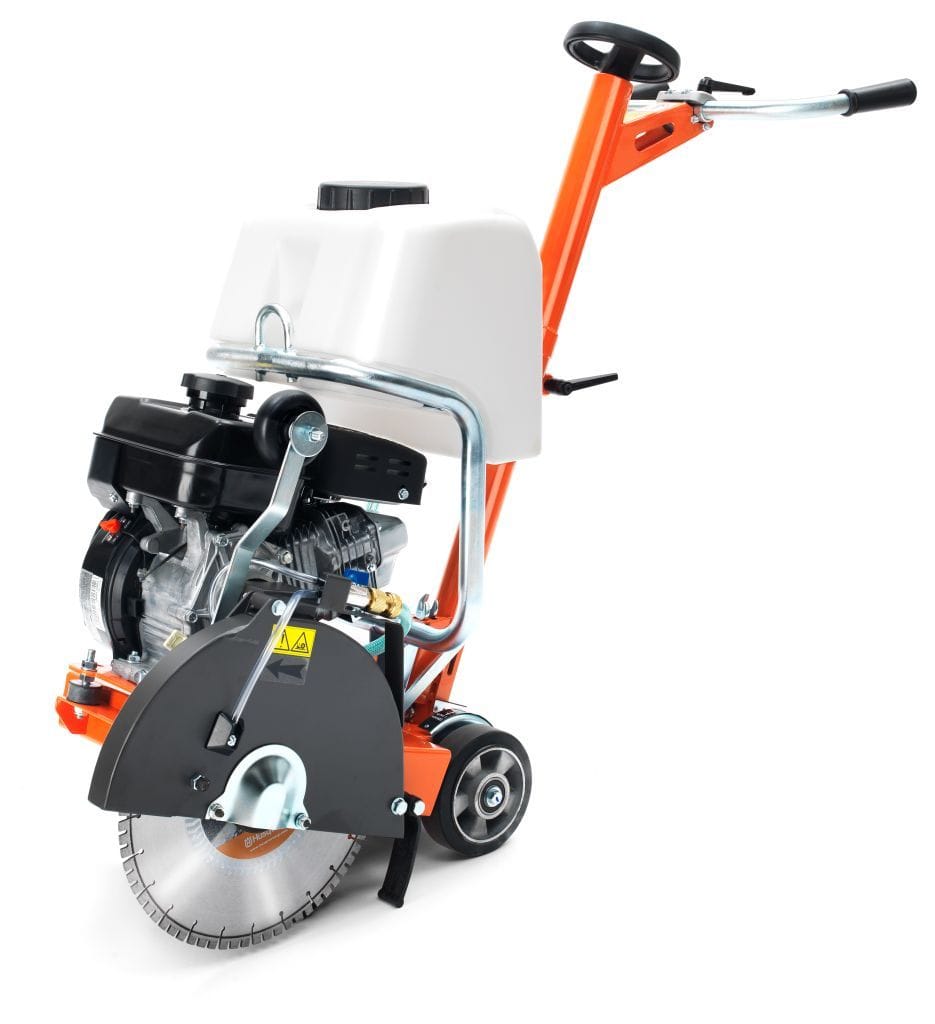

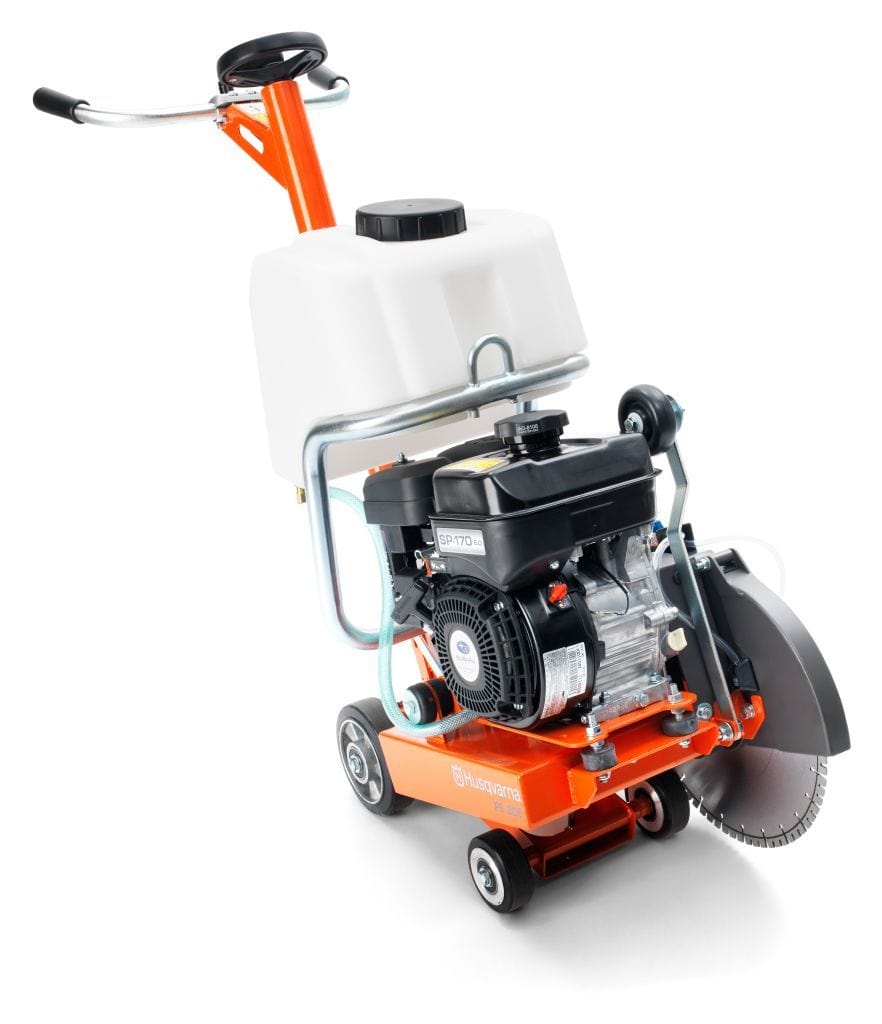

FS309 Husqvarna Push Concrete Saw Gas
FS309 Husqvarna Push Concrete Saw Gas

$2,489.00

Additional Info

FS309 HUSQVARNA PUSH WALK BEHIND SAW

BLADE AND WATER TANK NOT INCLUDED, AVAILABLE SEPARATELY

Applications

  • Ideal for cutting in difficult to access job sites.
  • Utilized for very small road repair jobs.
  • A great rental saw, it is perfect for residential jobs.
  • Left-hand sawing only.

Benefits

  • Very lightweight and compact, it eases transporting and handling of the saw.
  • Adjustable handle and extendable right rear wheel increases stability and reduces fatigue.
  • Gas assisted raise/lower system reduces the force required to raise and lower the blade in and out of the cut.
  • Excellent power transmission to the blade due to the Poly V-belt, which increases production.

TECHNICAL SPECIFICATIONS

Max blade diameter, in 14"
Max depth of cut, in 4-5/8"
Average bladeshaft, RPM 3,500
Blade flanges, in 4-1/2"
Max weight crated, lbs 198
Max weight uncrated, lbs 117

Engine SpecificationsRobin EX27X
Maximum power, HP (kW)8-1/2 (6)
Arbor size, in (mm)1" (25)
Bladeshaft diameter, in (mm)3/4" (19)
Cylinders / Cycle1/4
Fuel Capacity, gal (l)1.6 (6.1)
Air FilterDry Type Dual Element Cyclone
Starter Recoil
Engine CoolingAir
Wheels front, in (mm)4" x 1-1/2" x 5/8" (114x 38 x 16)
Wheels rear, in (mm)6" x 1-1/2" x 5/8" (152x 38 x 16)
Blade guard typeBolt on
Number of belts14 Rib Poly V Belt
Blade depth controlScrew feed
Dimensions uncrated, pointer and blade guard up, handles in, L x W x H36" x 15" x 39"
Displacement, cu in (l)16.2 (265)
Bore / Stroke, in (mm)2.95 / 2.36 (75/60)
Oil Capacity, qt (l)1.2 (1.1)
Handlebar adjustmentVariable position
Transmission TypePush
