Vendor: Husqvarna
FS309 Husqvarna Push Concrete Saw Gas
Regular price
$2,489.00
Regular price
Sale price
$2,489.00
Unit price
/
per
Shipping calculated at checkout.
Sku:
967678301
Couldn't load pickup availability

Notified by email when this product becomes available
FS309 Husqvarna Push Concrete Saw Gas
$2,489.00
Additional Info

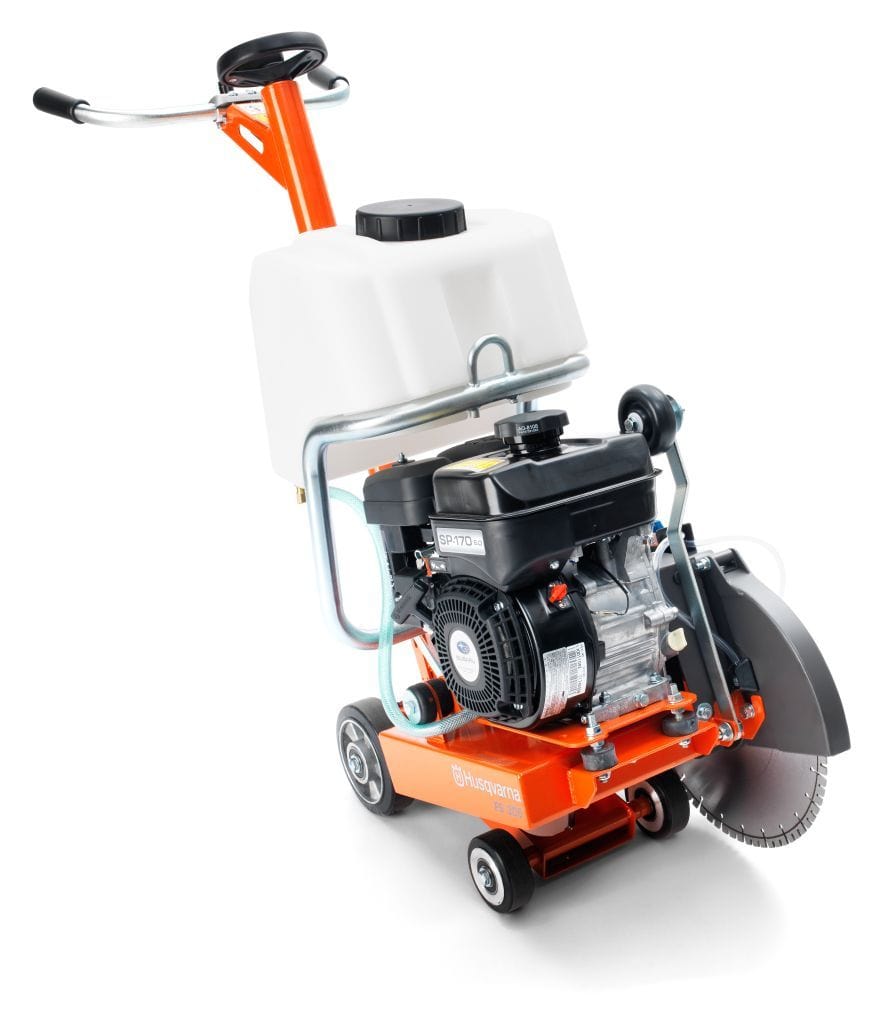

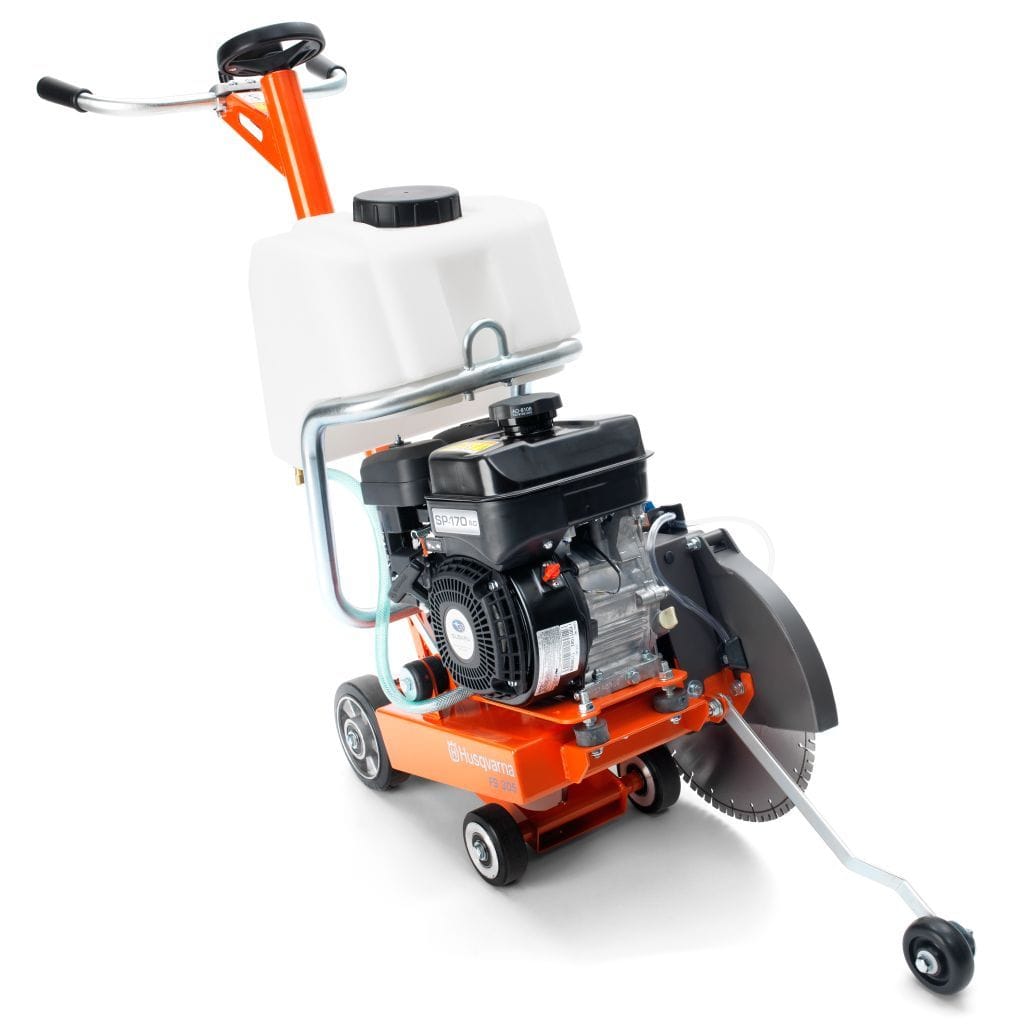

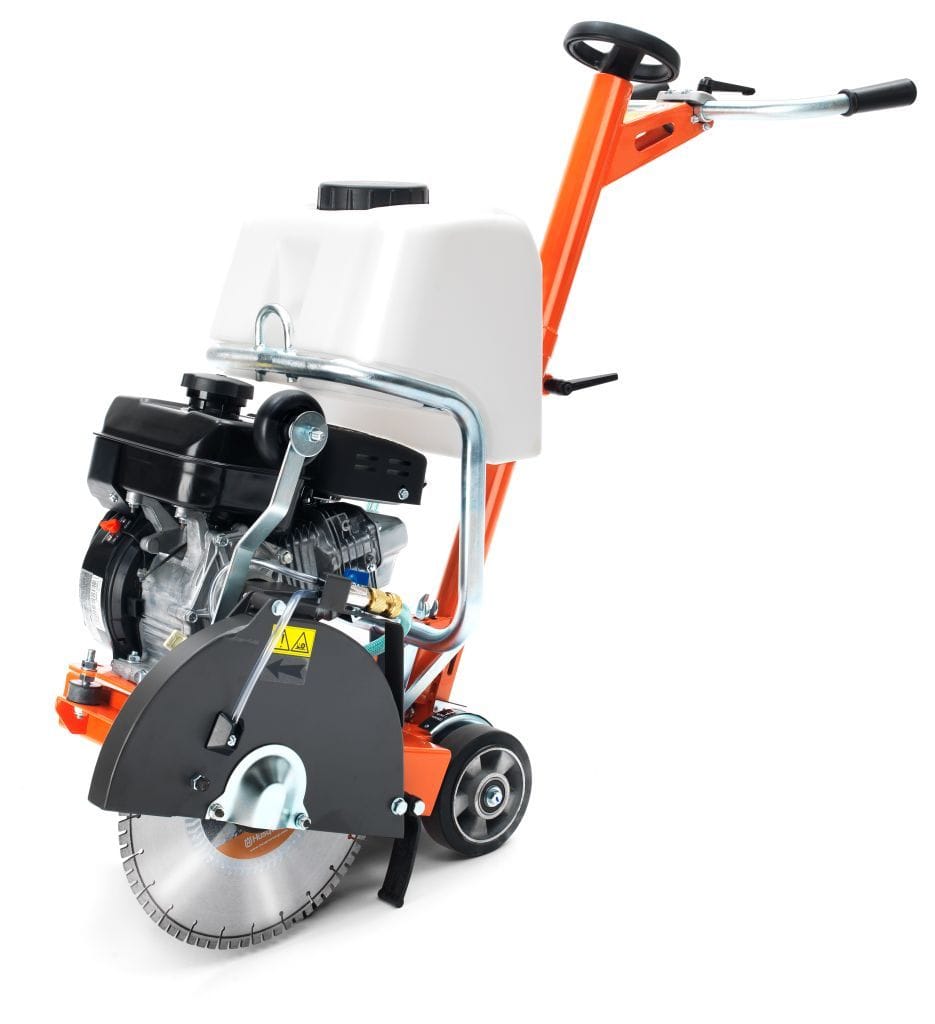

FS309 HUSQVARNA PUSH WALK BEHIND SAW
BLADE AND WATER TANK NOT INCLUDED, AVAILABLE SEPARATELY
Applications
- Ideal for cutting in difficult to access job sites.
- Utilized for very small road repair jobs.
- A great rental saw, it is perfect for residential jobs.
- Left-hand sawing only.
Benefits
- Very lightweight and compact, it eases transporting and handling of the saw.
- Adjustable handle and extendable right rear wheel increases stability and reduces fatigue.
- Gas assisted raise/lower system reduces the force required to raise and lower the blade in and out of the cut.
- Excellent power transmission to the blade due to the Poly V-belt, which increases production.
TECHNICAL SPECIFICATIONS
| Max blade diameter, in | 14" |
| Max depth of cut, in | 4-5/8" |
| Average bladeshaft, RPM | 3,500 |
| Blade flanges, in | 4-1/2" |
| Max weight crated, lbs | 198 |
| Max weight uncrated, lbs | 117 |
| Engine Specifications | Robin EX27X |
| Maximum power, HP (kW) | 8-1/2 (6) |
| Arbor size, in (mm) | 1" (25) |
| Bladeshaft diameter, in (mm) | 3/4" (19) |
| Cylinders / Cycle | 1/4 |
| Fuel Capacity, gal (l) | 1.6 (6.1) |
| Air Filter | Dry Type Dual Element Cyclone |
| Starter | Recoil |
| Engine Cooling | Air |
| Wheels front, in (mm) | 4" x 1-1/2" x 5/8" (114x 38 x 16) |
| Wheels rear, in (mm) | 6" x 1-1/2" x 5/8" (152x 38 x 16) |
| Blade guard type | Bolt on |
| Number of belts | 14 Rib Poly V Belt |
| Blade depth control | Screw feed |
| Dimensions uncrated, pointer and blade guard up, handles in, L x W x H | 36" x 15" x 39" |
| Displacement, cu in (l) | 16.2 (265) |
| Bore / Stroke, in (mm) | 2.95 / 2.36 (75/60) |
| Oil Capacity, qt (l) | 1.2 (1.1) |
| Handlebar adjustment | Variable position |
| Transmission Type | Push |
