Vendor: Diamond Products

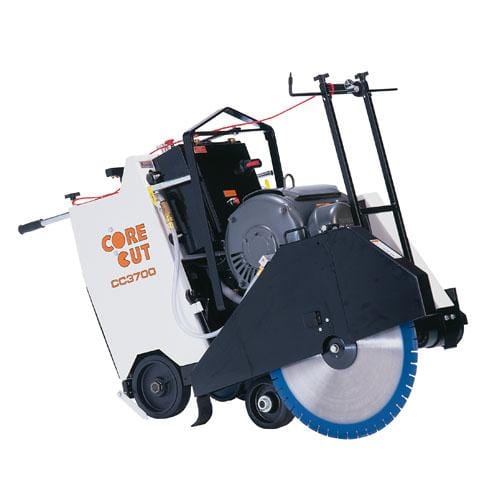

CC3700E 3-Speed Electric Core Cut Walk Behind Saw

$30,035.00
$30,035.00
Sold out
Shipping calculated at checkout.
Sku: 5801080A

Caret Down
Caret Down
Caret Down

Finance your Next Project

Click Here to Apply for Financing

View full details
CC3700E 3-Speed Electric Core Cut Walk Behind Saw
CC3700E 3-Speed Electric Core Cut Walk..
Caret Down

Additional Info

DIAMOND PRODUCTS CC3700E 3-SPEED CORE CUT WALK BEHIND SAW

BLADE NOT INCLUDED, AVAILABLE SEPARATELY

FEATURES & BENEFITS

  • Frame designed for higher torque from high horsepower engines
  • Forward position motor for more weight at the blade and less on the operator
  • Self propelled
  • Front pivot allows easy turning
  • Multi-function control handle
  • 3-Speed Gearbox allows optimal cutting speed and blade life with different size blades

CC 3700E SPECIFICATIONS

Horsepower, hp 30 40
Voltage, v 460v 460v
Power supply, phase 3-phase 3-phase
Motor Amps 37 48
Weight, lbs 1,545 1,575



3-SPEED GEARBOX INFO

Blade size Blade RPM

Gear setting

High, Med, Low

 Max cut depth
14" 2,925 H 3-3/4"
20" 2,520 H 6-3/4"
26" 1,950 M 9-3/4"
30" 1,680 M 11-3/4"
36" 1,300 L 14-3/4"
42" 1,120 L 17-3/4"

Max depth of cut with 14" blade4-3/8"
Max depth of cut with 20" blade7-3/8"
Max depth of cut with 26" blade10-3/8"
Max depth of cut with 30" blade12-3/8"
Max depth of cut with 36" blade14-3/4"
Max depth of cut with 42" blade17-3/4"
Blade shaft diameter1-3/4"
Arbor size1" with single drive pin
Blade shaft drive8 belts
Blade mountingRight or left
Blade raise / lowerElectro-hydraulic pump
TransmissionEaton Model 10
Drive speed0-200 feet per minute
Blade raise / lowerElectro-hydraulic pump
IncludesHour meter, frame lift, cutting depth indicator, quick disconnect blade flanges, telescoping front pointer
