Vendor: Bartell Global

Bartell Global P650E Planetary Grinder

$20,475.00
$20,475.00
Sold out
Shipping calculated at checkout.
Sku: P650E

3 Headed Planetary grinder, 220V, Single Phase - 25" Diameter 7.5hp (5.6kW) with integrated 3" Vacuum Port, delivering 565lbs of Grinding Force on 9" Heads

Finance your Next Project

Click Here to Apply for Financing

View full details
Bartell Global P650E Planetary Grinder
Bartell Global P650E Planetary Grinder

$20,475.00

Additional Info

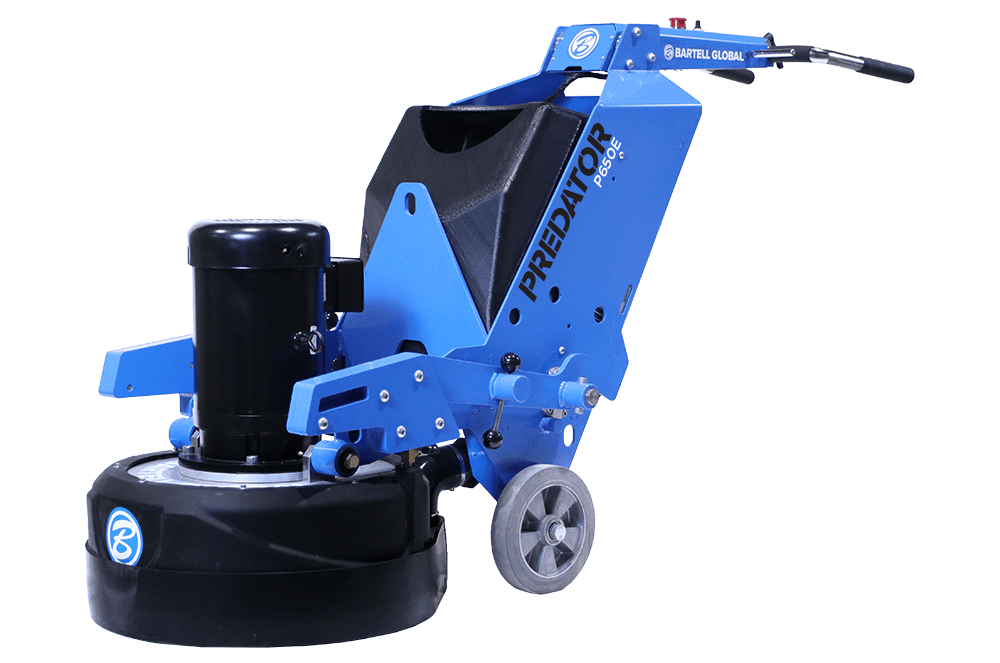

P650E PLANETARY GRINDER

The ALL NEW Predator line of concrete grinder / polishers is a PREMIUM LINE OF PLANETARY GRINDERS, newly REIMAGINED, REDESIGNED, and REENGINEERED with some of the highest standards in the industry, ensuring they are extremely reliable, productive, balanced, and easy to use for any operator. Designed to pair with the HD HEPA-filter Dust Extraction system for unbeatable dust control so your job site stays safe and compliant.

  • 3-head planetary design
  • Precise weight distribution for exceptional balance
  • Reliable belt-driven technology
  • Quick adjusting handles
  • Adjustable spring-assisted swing weights for variable head-pressure
  • Heavy-duty plate steel frame

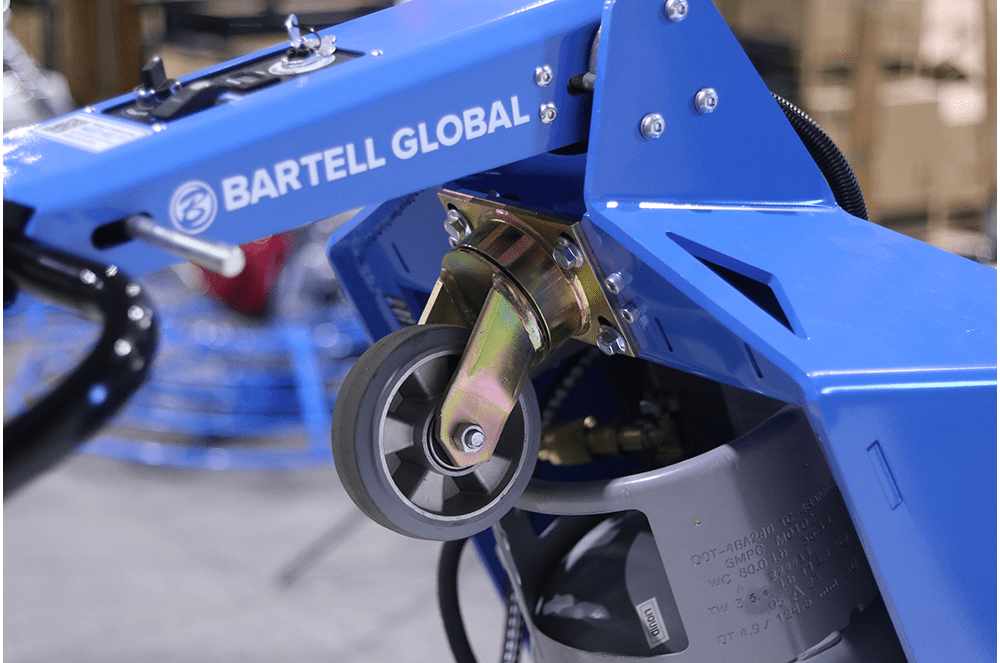

  • Integrated transport wheel for safe mobility around the job-site

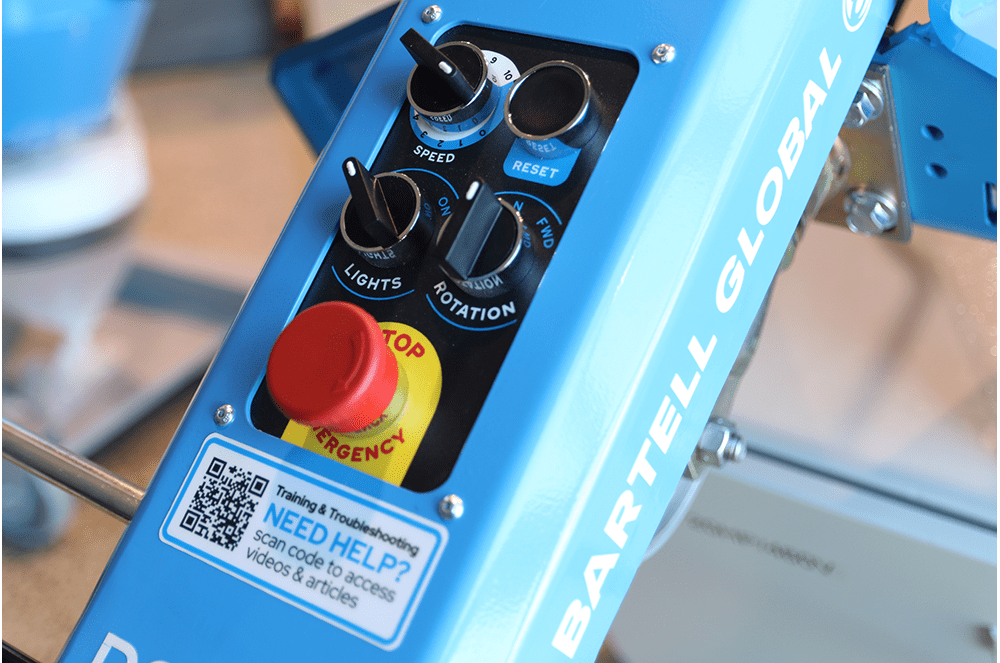

  • Variable speed control
  • Forward/reverse grinding
  • Integrated water tank

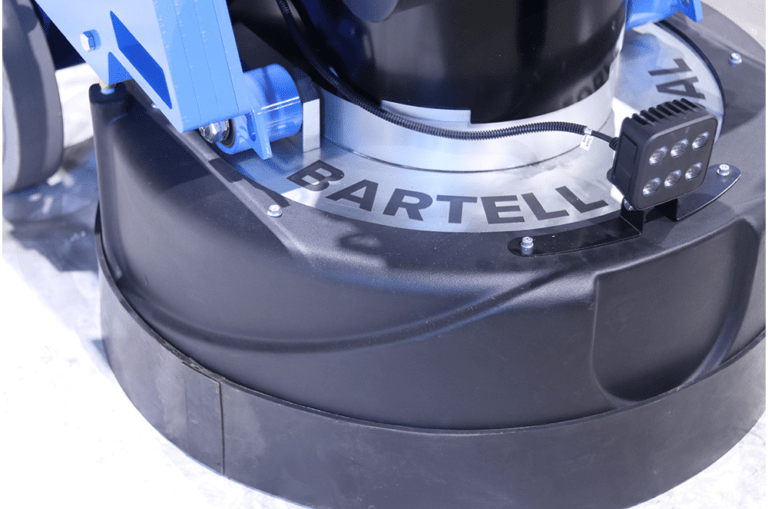

  • Bright LED work light at both front and rear of the machine
  • Adjustable dust skirt for effective dust suppression
  • Integrated lift, tie-down, and winch points



Technical Specifications: MODEL P650E Electric Motor: 230V, 60 Hz, 1 Phase 230V, 60 Hz, 3 Phase 460V, 60 Hz 3 Phase Power Output: 7.5 hp (5.6 kW) 10 hp (7.5 kW) Variable Head Speed: 1012 rpm Water Tank Capacity: 7.5 gal (28 litres) Vacuum Port: 3" (75 mm) Grinding Force: 565 lbs (256 kg) Grinding Width: 25" (625 mm) Individual Head Diameter: 9" (229 mm) Max Height (Handle Up): 76" (1930 mm) Min Height (Handle Down): 44" (1118 mm) Min Length (Handle & Weights Forward): 52" (1321 mm) Max Length (Handle & Weights Back): 83" (2108 mm) Width: 26" (660 mm) Machine Weight: 775 lbs (351 kg)
