Vendor: Diamond Products

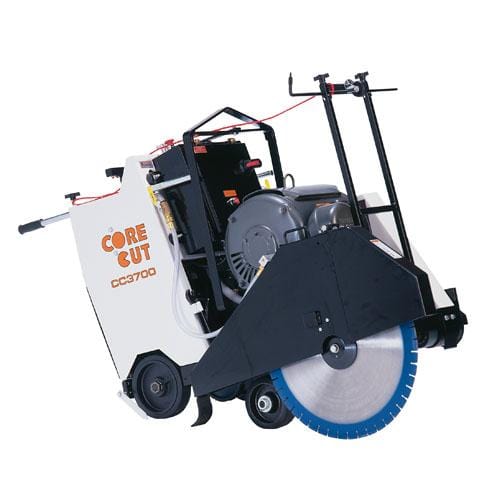

CC3700E Electric Core Cut Walk Behind Saw

$19,908.00
$19,908.00
Sold out
Shipping calculated at checkout.
Sku: 5800445A

Caret Down
Caret Down
Caret Down

Finance your Next Project

Click Here to Apply for Financing

View full details
CC3700E Electric Core Cut Walk Behind Saw
CC3700E Electric Core Cut Walk Behind..
Caret Down

Additional Info

DIAMOND PRODUCTS CC3700E CORE CUT WALK BEHIND SAW

BLADE NOT INCLUDED, AVAILABLE SEPARATELY

Features & Benefits

  • Frame designed for higher torque from high horsepower engines
  • Forward position motor for more weight at the blade and less on the operator
  • Self propelled
  • Front pivot allows easy turning

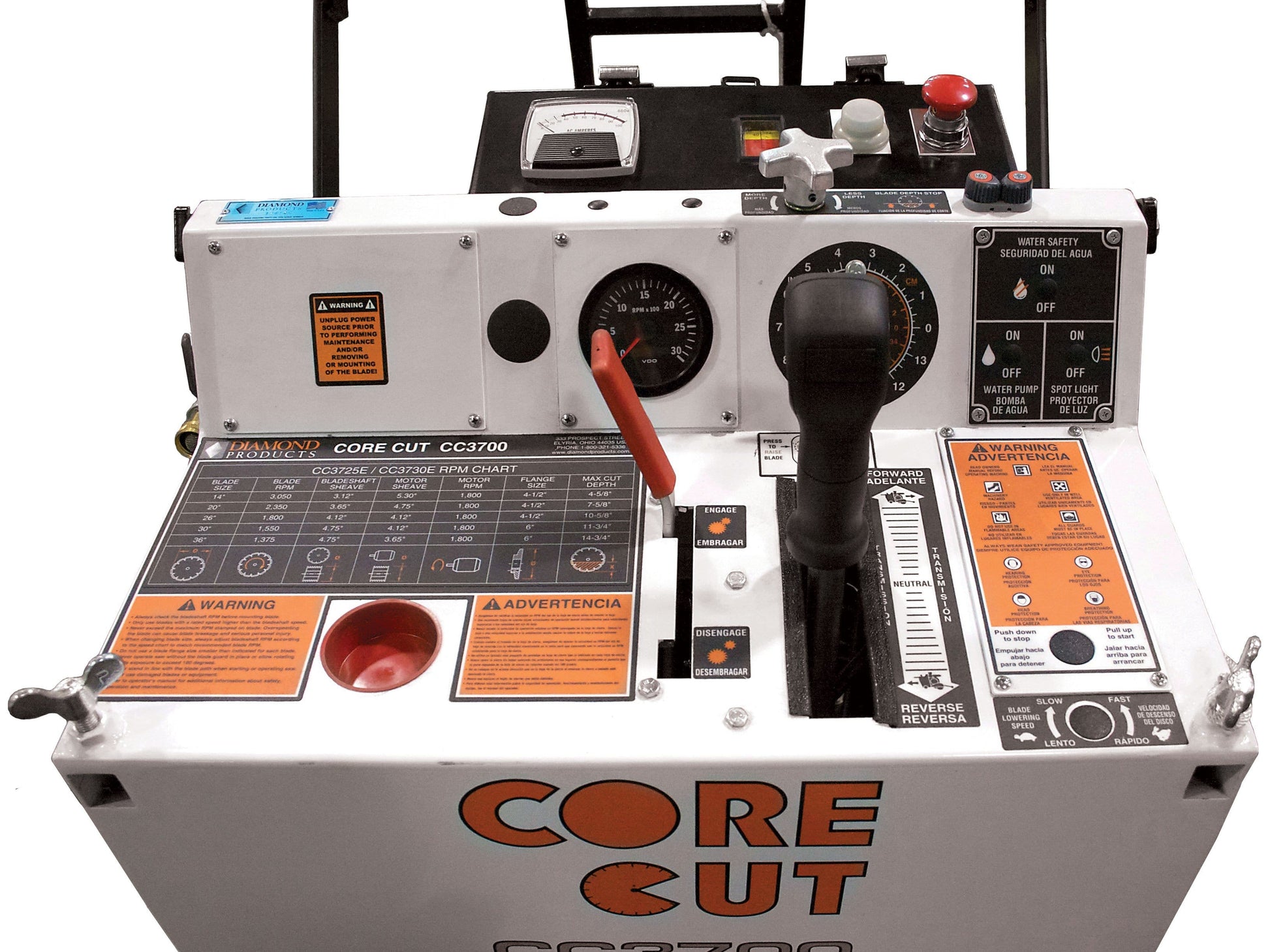

  • Multi-function control handle

CC 3700E SPECIFICATIONS

Horsepower, hp 25 25 30 40
Voltage, v 230v 460v 460v 460v
Power supply, phase 3-phase 3-phase 3-phase 3-phase
Motor Amps 58 29 37 48
Weight, lbs 1,350 1,350 1,455 1,565

Max depth of cut with 14" blade4-3/8"
Max depth of cut with 20" blade7-3/8"
Max depth of cut with 26" blade10-3/8"
Max depth of cut with 30" blade12-3/8"
Max depth of cut with 36" blade14-3/4"
Max depth of cut with 42" blade17-3/4"
Blade shaft diameter1-3/4"
Arbor size1" with single drive pin
Blade shaft drive8 belts
Blade mountingRight or left
Blade raise / lowerElectro-hydraulic pump
TransmissionEaton Model 10
Drive speed0-200 feet per minute
IncludesHour meter, frame lift, cutting depth indicator, quick disconnect blade flanges, telescoping front pointer

CC3700E Spec Sheet

CC3700E Parts List
